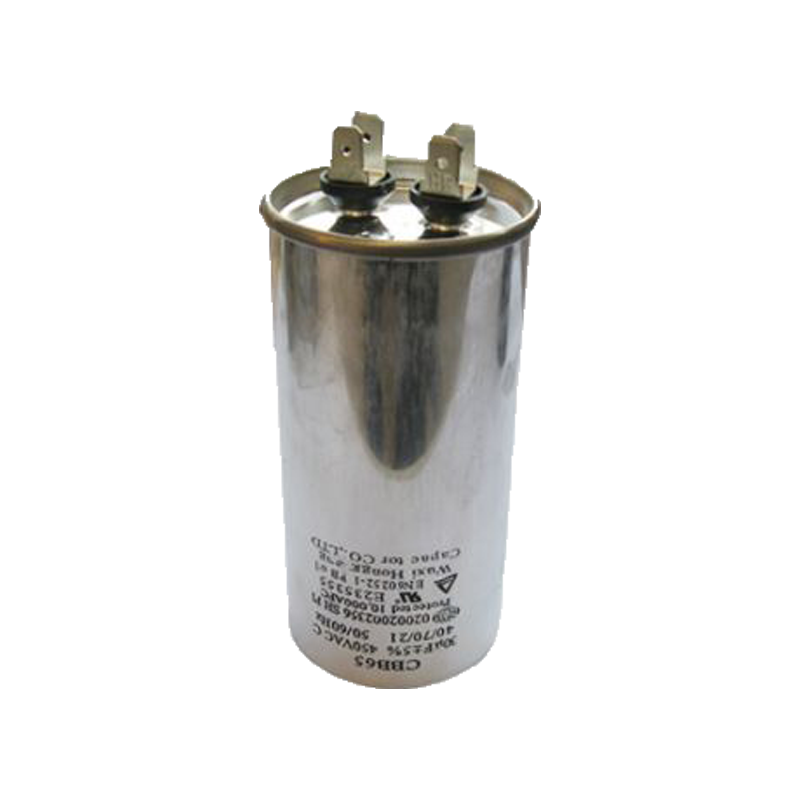

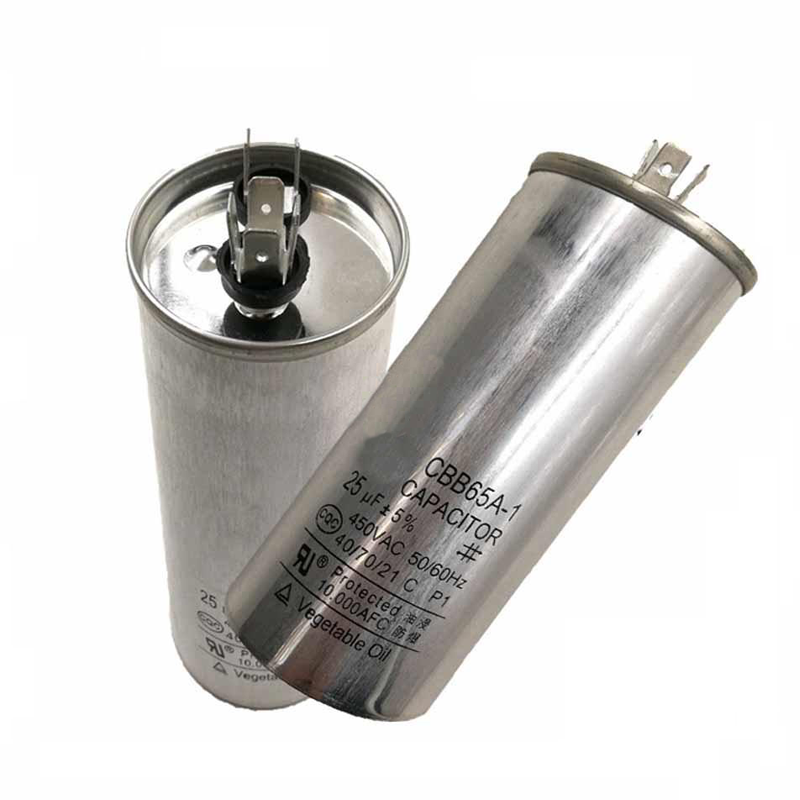

CBB65 Refrigeration Capacitor 450V AC 50/60Hz Waterproof Motor Run Capacitor for Refrigerator Freezer Air Conditioner Compressor

Our CBB65 refrigeration capacitor is a professional-grade AC motor run capacitor, meticulously engineered and purpose-built for the rigorous demands of refrigeration and cooling systems worldwide. As an indispensable component in the starting and running circuits of compressors, this capacitor ensures that refrigerators, freezers, display cases, beverage coolers, ice makers, air conditioners, heat pumps, and comprehensive HVAC systems operate with peak efficiency, consistent reliability, and extended service life. Whether deployed in a household kitchen, a supermarket cold aisle, a restaurant walk-in cooler, or an industrial cold storage warehouse, the CBB65 capacitor addresses the most common and frustrating challenges faced by cooling equipment: difficult startup under heavy load, excessive operational noise, voltage fluctuations, and unstable running performance that can compromise food safety, increase energy bills, and shorten compressor longevity.

At the core of this capacitor's superior performance lies its high-quality metallized polypropylene film dielectric material. Unlike cheaper electrolytic or paper-film capacitors that degrade rapidly under continuous AC stress, metallized polypropylene offers an exceptional combination of electrical properties, thermal stability, and mechanical durability. The film is manufactured through an advanced biaxial stretching process that aligns its molecular structure, resulting in remarkably low dielectric losses and high insulation resistance even at elevated temperatures. The metallization layer—typically a micron-thin coating of aluminum or zinc alloy applied under vacuum deposition—provides a self-healing property that sets this capacitor apart from ordinary designs. In the event of a localized dielectric breakdown caused by voltage spikes or transient surges, the metallized coating immediately vaporizes around the fault point, creating an insulating gap that isolates the defect and allows the capacitor to continue operating normally. This self-healing capability dramatically extends the useful life of the capacitor and prevents catastrophic failure, making it an exceptionally reliable choice for mission-critical refrigeration applications where unplanned downtime is simply unacceptable.

The fully sealed waterproof structure of the CBB65 capacitor is another engineering triumph that ensures unwavering performance in the challenging environments typical of refrigeration systems. Compressor compartments are notoriously damp, subject to condensation from temperature differentials, occasional water ingress during defrost cycles, and even direct splashing during cleaning procedures. The capacitor's robust aluminum or stainless-steel cylindrical housing is hermetically sealed with high-grade epoxy resin or rubber gaskets at both terminal and bottom ends, creating an impermeable barrier against moisture, dust, oil mist, and corrosive chemicals. This sealed construction not only prevents internal corrosion and oxidation of the film layers but also maintains a stable internal atmosphere, preserving the dielectric properties over decades of service. Many competing capacitors with inadequate sealing suffer from gradual capacitance drift, increased equivalent series resistance (ESR), and eventual failure after just a few years, whereas the CBB65 maintains its rated capacitance within tight tolerances—typically ±5%—throughout its entire operational lifespan. The waterproof design also facilitates installation in outdoor condensing units, rooftop HVAC systems, and refrigeration racks exposed to rain, snow, and extreme humidity, expanding its versatility across diverse climates and applications.

Low power loss and high insulation resistance are quantifiable advantages that translate directly into tangible operational savings. The dissipation factor (tan δ) of this capacitor is exceptionally low, typically ranging from 0.0005 to 0.001 at 50/60Hz, meaning that less than 0.1% of the electrical energy passing through is wasted as heat. This efficiency minimizes internal temperature rise, reduces the cooling load on the compressor, and contributes to overall system energy savings of 3% to 5% compared to systems using inferior capacitors. The insulation resistance, measured in megaohms per microfarad, consistently exceeds 3,000 MΩ·µF, ensuring negligible leakage current that could otherwise degrade compressor motor windings or trigger nuisance tripping of protective devices. For commercial operations running multiple refrigeration units 24/7, these seemingly minor percentage improvements accumulate into substantial reductions in annual electricity consumption, lower carbon footprints, and enhanced profitability.

Excellent heat resistance is a defining characteristic of the CBB65 design, enabling it to perform reliably in ambient temperatures ranging from -40°C to +70°C (-40°F to +158°F), with peak surge temperatures up to +85°C for short durations. This wide thermal operating window is achieved through the careful selection of high-temperature-grade polypropylene film, combined with a thermally conductive potting compound that efficiently transfers internal heat to the exterior housing. The capacitor's cylindrical shape maximizes surface area for natural convection cooling, while its lightweight yet sturdy construction resists deformation under thermal cycling. During compressor startup, inrush currents can briefly exceed 5 to 8 times the running current, generating significant I²R heating within the capacitor. The CBB65 withstands these repeated stress events without capacitance degradation, dielectric weakening, or mechanical failure, ensuring reliable motor starting even after thousands of on-off cycles. This heat resilience is particularly valuable in tropical climates, poorly ventilated machinery rooms, or densely packed electrical panels where ambient temperatures frequently soar, yet the capacitor must continue delivering rated performance without derating.

Anti-explosion performance represents a critical safety feature that distinguishes the CBB65 from ordinary capacitors. The aluminum housing is designed with a controlled venting mechanism or scored rupture points that safely release internal pressure in the extremely unlikely event of overpressure caused by sustained overvoltage, severe overheating, or end-of-life failure. Unlike electrolytic capacitors that can violently burst, spewing corrosive electrolyte and debris, the CBB65's explosion-proof construction contains any internal arcing and directs pressure outward in a controlled manner, protecting nearby personnel, sensitive electronic controls, and expensive compressor equipment. The capacitor is rigorously tested to withstand 1.5 times its rated voltage for 60 seconds without breakdown, and its internal fusing mechanism disconnects the element from the circuit if current exceeds safe thresholds, preventing fire hazards and complying with international safety standards including UL, VDE, CE, and CQC approvals. This commitment to safety gives installers, maintenance technicians, and end-users complete confidence in the component's integrity under all operating conditions.

In practical applications, the CBB65 capacitor effectively solves the three most persistent complaints associated with aging or poorly performing cooling equipment. First, difficult startup—when a compressor struggles to overcome system pressure differentials, especially after a short off-cycle or in high-ambient conditions—is resolved by the capacitor's high capacitance stability and low internal impedance, delivering the necessary phase-shifted current to the start winding with full torque. Second, loud operational noise, often caused by inadequate motor torque, unbalanced phase angles, or harmonic distortions, is significantly dampened as the capacitor smoothes the current waveform and reduces electromagnetic vibration. Third, unstable operation characterized by erratic cooling, frequent thermal overload trips, or fluctuating amp draw is corrected through consistent capacitance and tight tolerance maintenance, allowing the compressor to run smoothly and continuously within its designed parameters.

Installation of the CBB65 capacitor is straightforward, thanks to its standardized dimensions, universal mounting bracket options (stud-mount, snap-in, or screw-terminal configurations), and clearly marked polarity-free terminals. Its compatibility spans virtually all refrigeration compressor brands, including Copeland, Danfoss, Tecumseh, Bitzer, Carrier, and many others, making it a versatile drop-in replacement for OEM and aftermarket service needs. Professionals in the refrigeration and HVAC industries consistently choose the CBB65 as their trusted solution, knowing that it delivers dependable starting torque, quiet operation, energy efficiency, and long-term reliability in every application—from small domestic refrigerators to large commercial chillers. By investing in this premium-grade capacitor, users protect their cooling equipment investment, minimize service interruptions, and ensure that their perishable products remain perfectly preserved day after day, year after year.



Product Parameter Table
