Product brief description
Premium centrifugal air curtain equipped with high-static-pressure centrifugal fan and integrated metal structure. Adopting precision dynamic balance calibration and silent wind system, it features stable high-speed airflow, low noise operation and optional PTC heating function. It forms an invisible air barrier to isolate indoor and outdoor air convection, block dust, insects and peculiar smell. With excellent temperature insulation and energy-saving performance, it is an ideal air isolation equipment for malls, hotels, cold rooms, warehouses and industrial doorways.
Product detailed description

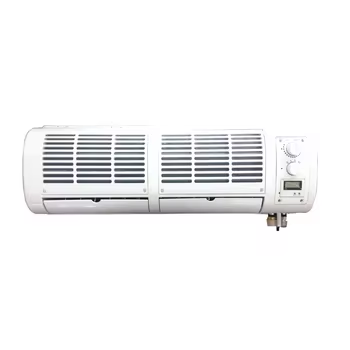

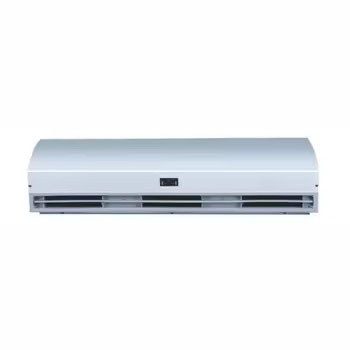

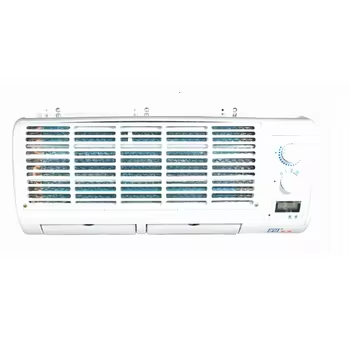

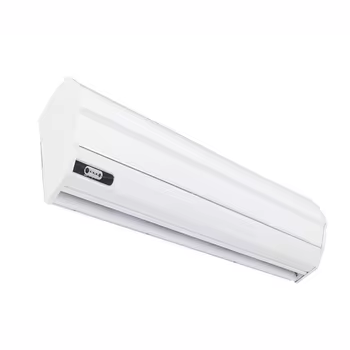

Premium Centrifugal Air Curtain for Commercial & Industrial Door Air Isolation System
Our centrifugal air curtain is a professional and high-efficiency air barrier equipment specially designed for large and high door opening ventilation insulation systems. Different from traditional cross-flow air curtains with low wind pressure and weak stability, this product adopts mature centrifugal fan technology and fully sealed static pressure air chamber structure. Through precise mechanical operation, it converts centrifugal force into continuous, uniform and high-pressure linear airflow, realizing full coverage of door openings and forming a dense invisible air isolation layer. With mature structural design and stable performance, this air curtain has become the most cost-effective temperature isolation and air purification solution for modern commercial and industrial venues.
Superior High Static Pressure Wind System & Strong Anti-Interference Performance
Equipped with high-precision centrifugal impeller and multi-level air duct optimization design, this centrifugal air curtain delivers far higher wind pressure and airflow stability than ordinary cross-flow products. The optimized air outlet structure ensures uniform wind speed at every position of the door opening, effectively solving the problems of scattered airflow, local blind spots and easy failure under external natural wind interference. It can resist indoor and outdoor air pressure difference and external strong wind impact stably, maintaining continuous and efficient air barrier effect. It is specially adapted for high door openings of 2.0m to 3.5m, which cannot be covered by ordinary air curtains, greatly expanding the applicable scenarios of door air isolation.
All-Season Energy Saving & Constant Temperature Insulation Effect
This air curtain supports natural wind and optional PTC heating dual working modes, realizing four-season cyclic energy-saving use. In hot summer, the high-speed air wall locks indoor cold air, avoids a large amount of cold air loss caused by frequent door opening and closing, reduces the running load of air-conditioning equipment, and effectively cuts down refrigeration power consumption. In cold winter, the optional high-efficiency PTC heating module provides stable and gentle warm airflow, which can isolate outdoor cold wind invasion, prevent indoor heat loss, and improve the ambient comfort of door area. Long-term operation can effectively reduce the energy consumption of central air conditioning and heating equipment, bringing significant energy-saving benefits for commercial and industrial places.
Low Noise Commercial-Grade Design & Durable Anti-Corrosion Structure
The whole machine adopts thickened high-strength metal shell and high-precision dynamically balanced impeller. After professional silencing structure optimization and repeated running debugging, the equipment operates smoothly with ultra-low noise, and the overall noise is controlled below 58dB. No harsh vibration or abnormal noise will be generated during long-term continuous operation, which will not affect the quiet business environment of shopping malls, hotels, office buildings and supermarkets. The surface adopts high-standard electrostatic spraying anti-corrosion treatment, which is resistant to oxidation, moisture and dust erosion. It can adapt to harsh working environments such as high temperature, high humidity and heavy dust in warehouses, workshops, cold storage and logistics centers, effectively avoiding equipment aging and rust damage and greatly extending the overall service life.
Intelligent Dual Control & Flexible Adjustable Operation
This air curtain is equipped with dual control system of body physical buttons and wireless remote control, supporting one-key start and stop, multi-level wind speed adjustment, heating function switch and flexible mode conversion. The operation interface is simple and intuitive, no professional operation is required, and remote control can be realized, which greatly improves daily use and management efficiency. Multi-level wind speed can be adjusted freely according to door width, installation height and external wind speed, realizing precise matching of air barrier effect and on-site working conditions, ensuring the best isolation effect in different environments.
Integrated Molding & Fast Installation Replacement
Adopting integral stamping and welding molding process, the air curtain has high overall structural rigidity, not easy to deform during transportation and installation. Standard fixed mounting brackets and reserved mounting holes are configured, supporting wall-mounted and door-top embedded installation methods. The overall structure is lightweight and compact, no complicated auxiliary accessories are required, and the installation and replacement process is efficient and labor-saving. It is suitable for new project supporting installation, old equipment replacement and after-sales maintenance, and can meet the bulk supporting and OEM customized needs of global engineering customers.
Wide Application & Global Market Compatibility
Widely applicable for shopping malls, supermarkets, hotels, restaurants, office buildings, exhibition halls, pharmaceutical workshops, food processing workshops, constant temperature laboratories, cold storage, warehouses, logistics distribution centers and industrial factory door openings. It can effectively isolate outdoor dust, flying insects, pollen, exhaust gas and peculiar odors, keep indoor air clean and sterile, and stabilize indoor constant temperature environment. The product complies with international electrical safety standards, supports customized 110V/220V voltage and 50/60Hz frequency, with stable quality and competitive price, and is widely exported to Southeast Asia, Middle East, Africa, Europe and America markets.
Product Specifications
Core Configuration Parameter
Fan Type: High Static Pressure Centrifugal Fan Running Noise: ≤58dB Control Mode: Manual Button + Wireless Remote Control Optional Function: PTC Electric Heating Applicable Door Height: 2.0m-3.5m Custom Voltage: 110V / 220V 50Hz/60Hz
MODEL |
SPEC(LENGTH) |
WIND SPEED |
APPLICABLE DOOR WIDTH |
HEATING POWER(OPTIONAL) |
CAC-090 |
900mm |
13-15m/s |
≤900mm |
1500W |
CAC-100 |
1000mm |
13-15m/s |
≤1000mm |
1800W |
CAC-120 |
1200mm |
13-15m/s |
≤1200mm |
2000W |
CAC-150 |
1500mm |
13-15m/s |
≤1500mm |
2500W |
CAC-180 |
1800mm |
13-15m/s |
≤1800mm |
3000W |
CAC-200 |
2000mm |
13-15m/s |
≤2000mm |
3500W |
FAQ
Q1: What is a centrifugal air curtain used for?
A: The centrifugal air curtain is a professional air isolation and energy-saving equipment for door openings. It forms a high-speed invisible air wall to block indoor and outdoor air convection, stabilize indoor temperature, reduce air conditioning energy consumption, and isolate outdoor dust, flying insects and peculiar odors, which is widely used in various commercial and industrial door scenarios.
Q2: What is the advantage of centrifugal air curtain compared with ordinary cross-flow type?
A: Centrifugal air curtain has higher static pressure and stronger wind resistance, which can adapt to higher door openings of 2-3.5m. The airflow is more uniform and stable, not easy to be scattered by external natural wind, with better air barrier effect and more stable long-term operation performance.
Q3: Does this air curtain support heating function?
A: Yes. We provide optional PTC constant temperature heating module. The heating version can output stable warm air in winter to isolate cold wind and prevent heat loss, realizing all-season use in summer heat insulation and winter heat preservation.
Q4: Is the air curtain quiet during working?
A: Absolutely. This commercial air curtain adopts dynamic balance calibration and multi-layer silencing structure design. The overall operating noise is lower than 58dB, which will not produce noise disturbance, meeting the quiet use standards of shopping malls, hotels and offices.
Q5: What working scenarios is this product suitable for?
A: It is widely applicable for supermarkets, malls, hotels, restaurants, office buildings, cold rooms, warehouses, logistics centers, food workshops, pharmaceutical workshops and other commercial and industrial places, suitable for all kinds of door opening air isolation and temperature insulation needs.
Q6: Is the installation of this centrifugal air curtain complicated?
A: No. The product adopts integrated integral molding structure, equipped with standard mounting brackets and reserved holes. It supports wall-mounted and door-top installation, with simple operation and fast installation, which is convenient for replacement and after-sales maintenance.
Q7: Do you support customized size and voltage?
A: Yes. We support OEM and ODM customization, including different body lengths, special voltage of 110V/220V, 50Hz/60Hz frequency, and special structural requirements to match different installation environments.
Q8: What is your product packaging and shipping solution?
A: All air curtains adopt thickened carton with internal shockproof protection. Bulk export orders use wooden frame reinforcement to prevent extrusion and deformation during long-distance transportation. It supports sea and air shipping, suitable for global export and wholesale orders.
