Heavy-Duty AC Mounting Bracket | 200KG Load Capacity | Anti-Rust & Anti-Vibration

Product brief description

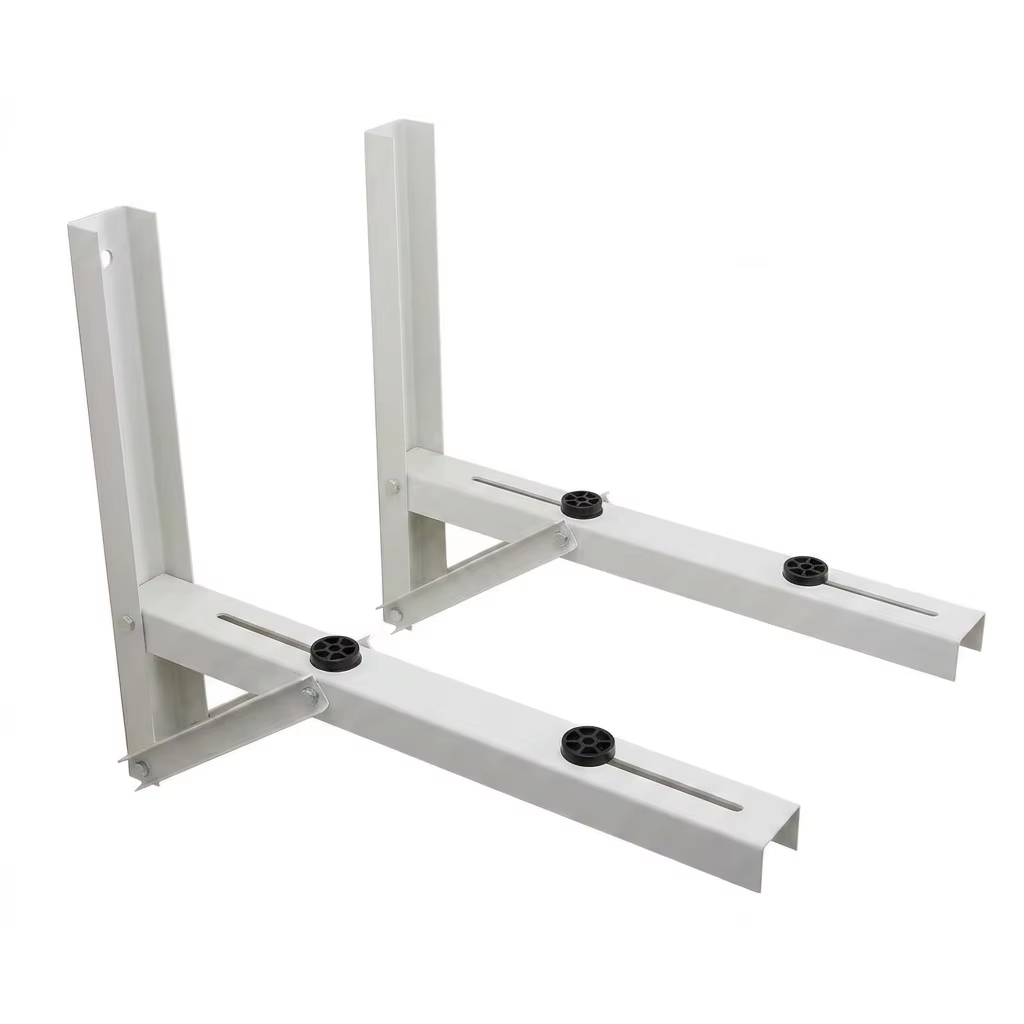

Designed for split air conditioner outdoor units up to 200KG, this heavy-duty wall-mounted bracket set combines galvanized steel strength with a durable powder-coated finish. Four adjustable honeycomb rubber anti-vibration pads absorb compressor noise and protect your walls. Pre-drilled slots allow flexible positioning, and the reinforced cross-brace design eliminates sagging over time. Suitable for residential, commercial, and coastal installations.

Product detailed description

Built to Carry More, Built to Last Longer

Most standard AC brackets struggle beyond 120KG. Ours doesn't. Each bracket assembly is fabricated from heavy-gauge galvanized steel and finished with an electrostatic powder coating — two layers of defense against rain, humidity, and salt air. Whether you're installing a 3.5KW residential unit or a 10KW commercial condenser, this bracket holds firm.

Why Galvanized + Powder-Coated Matters

Bare steel rusts. Cheap paint flakes. Our brackets start with hot-dip galvanized steel for deep corrosion resistance, then add a powder-coated top layer for extra weatherproofing and a clean, professional look. Coastal installers trust this combination.

Silence the Vibration

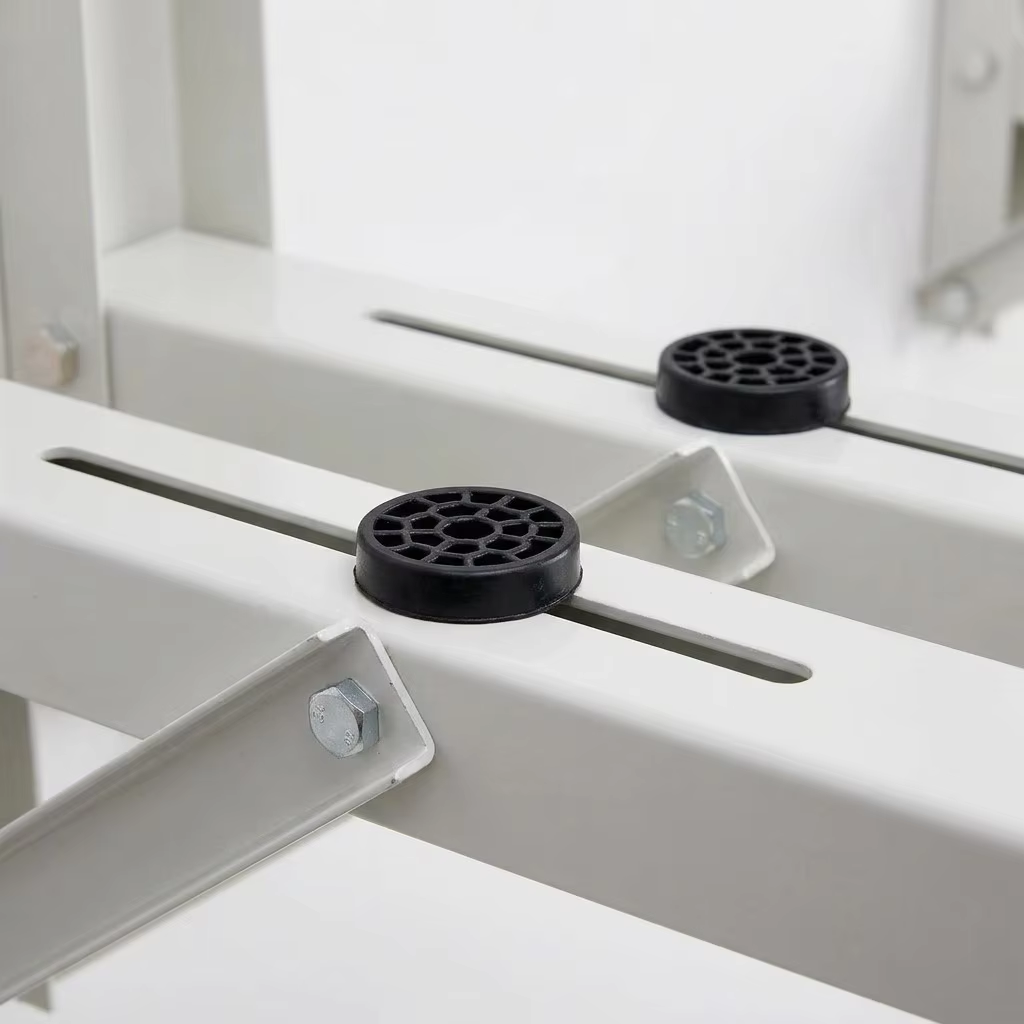

The four included honeycomb-pattern rubber pads aren't an afterthought — they're engineered. The multi-cell structure dissipates compressor vibration before it travels into your wall, reducing low-frequency hum by up to 40%. Your customer gets a quieter home; you get fewer callbacks.

Installer-Friendly Design

Adjustable arm slots let you slide the pads to match any unit footprint

Pre-drilled mounting holes eliminate guesswork and drilling on-site

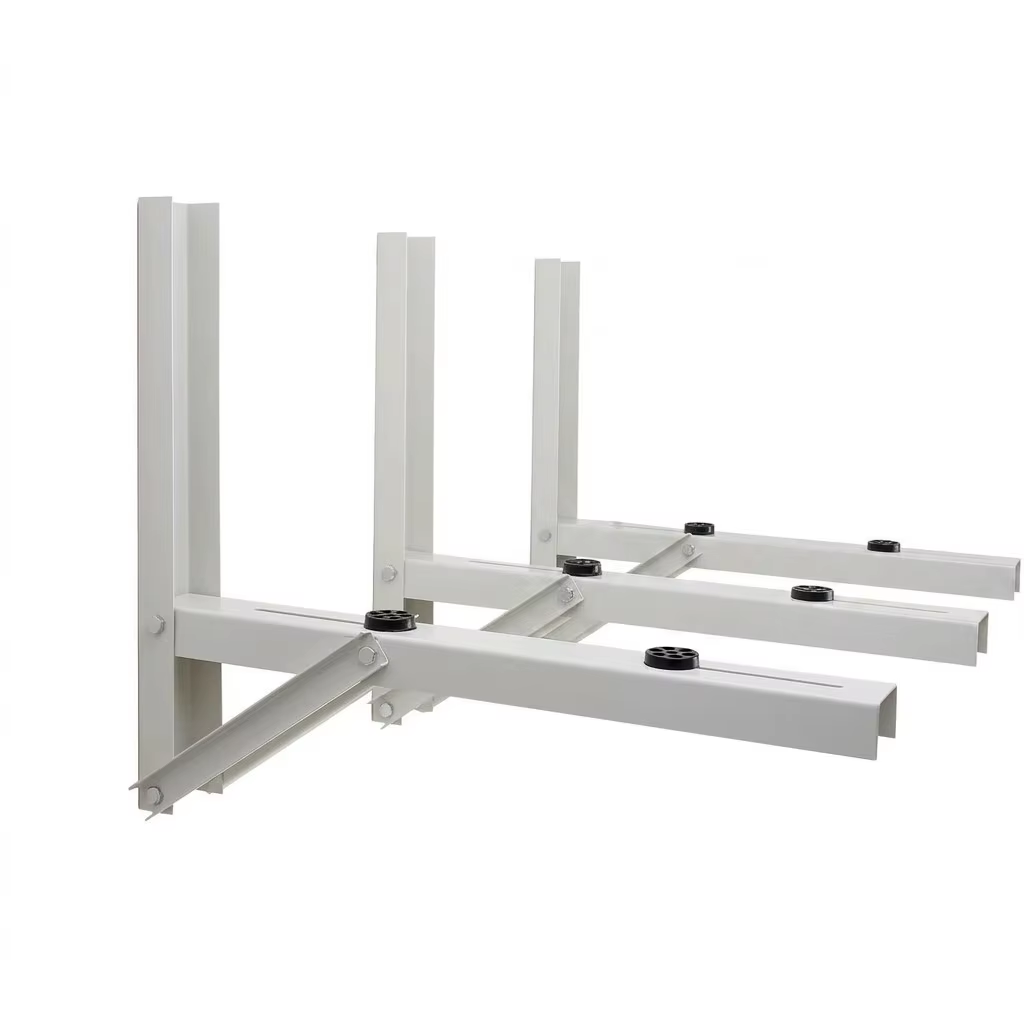

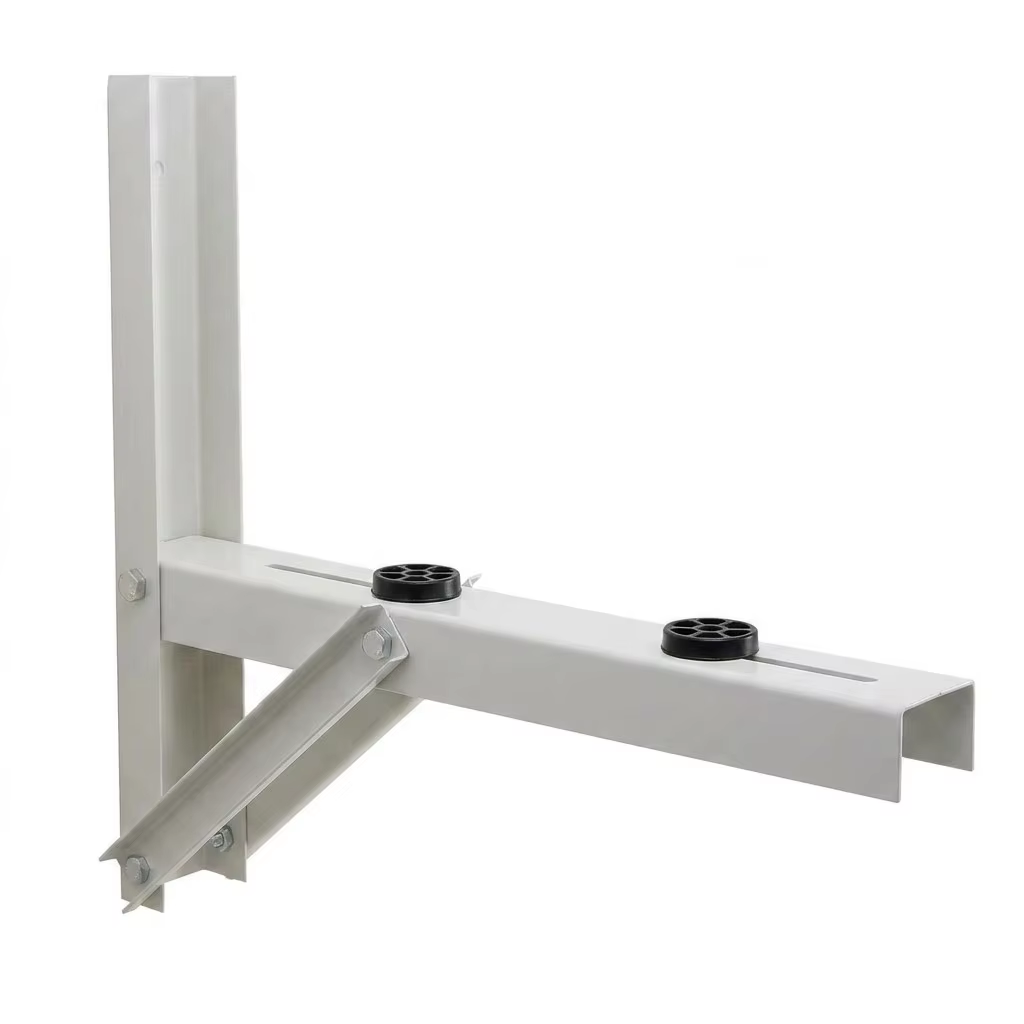

Diagonal cross-braces lock the structure rigid — no flex, no sag

Complete bolt kit ships with every pair — stainless steel expansion bolts, washers, and nuts

Product Specifications

FAQ

Q1: What is the maximum weight this bracket can support?

A: The bracket pair is tested and rated for 200KG when properly installed on a solid concrete or brick wall using the included expansion bolts. For hollow-block or lightweight walls, consult a structural engineer before installation.

Q2: Is this bracket suitable for coastal areas?

A: Yes. The hot-dip galvanized base layer provides strong salt-spray resistance, and the powder-coated top layer adds an extra barrier. We recommend occasional inspection in extreme coastal environments, but this dual-layer protection significantly outperforms standard painted steel brackets.

Q3: Will the anti-vibration pads degrade over time?

A: The pads are made from EPDM rubber, which is UV-resistant, ozone-resistant, and rated for outdoor use. Under normal conditions they last 8–10 years without cracking or hardening. They are also replaceable — simply loosen the slot screw and slide a new pad in.

Q4: Can I adjust the position of the unit after installation?

A: Yes. The horizontal arms feature elongated adjustment slots that allow you to slide the anti-vibration pads ±80mm to match different unit footprints. This is especially useful when replacing an old outdoor unit with a different model.

Q5: Does this bracket work with all AC brands?

 A: The bracket is brand-agnostic and fits most split-system outdoor condensers from 1HP to 5HP. The adjustable pad spacing accommodates virtually all standard residential and light commercial unit footprints. For specific dimensions, please check the arm length against your unit's mounting hole spacing.

Q6: What type of wall is required for safe installation?

 A: Solid concrete, reinforced brick, or structural masonry walls are ideal. For other wall types (timber frame, steel stud, hollow block), additional reinforcement or specialized anchors may be needed — always follow local building codes.

Q7: How does the powder coating compare to stainless steel?

A: Stainless steel offers the highest corrosion resistance but at 2–3× the cost. Our galvanized + powder-coated combination delivers 90% of the outdoor durability at a significantly better price point, making it the practical choice for most installations. We also offer a full SS304 stainless steel version for extreme environments — contact us for pricing.

Q8: Can I order in a custom color or with my own logo?

A: Yes. For bulk orders (MOQ 500 pairs), we offer custom powder-coat colors and laser-engraved or silkscreen logo branding. Contact our sales team with your requirements.

Q9: What certifications does this bracket meet?

A: Our brackets undergo load testing per industry standards and are manufactured under ISO 9001 quality management. Material certificates (MTC per EN 10204 3.1) and third-party test reports are available on request.

Q10: What is your warranty policy?

A: We provide a 2-year warranty against manufacturing defects and structural failure under normal use. Rust-through within the warranty period qualifies for free replacement. Damage from improper installation, overload beyond 200KG, or natural disasters is not covered.
