Compressor Overload Protector: Essential Thermal Protection for Refrigeration Systems

Compressor Overload Protector: Essential Thermal Protection for Refrigeration Systems

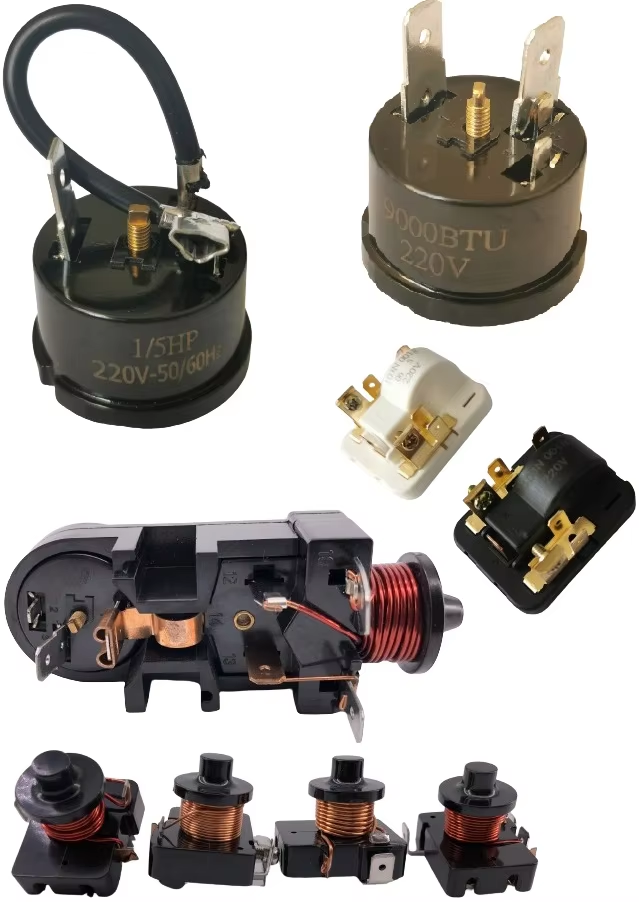

The compressor overload protector is a critical safety component in refrigeration and air conditioning systems, designed to safeguard the compressor from damage caused by excessive current, overheating, or abnormal operating conditions. In the demanding environments of refrigerators, freezers, water dispensers, air conditioners, and cold rooms, reliable overload protection ensures system longevity and optimal performance. Suzhou Eletek inc., a leading manufacturer of household refrigeration parts, offers high-quality compressor overload protectors engineered to meet rigorous international standards. Our protectors are precision-built to respond swiftly to thermal and electrical anomalies, preventing compressor burnout and reducing costly repairs. We understand that each application has unique requirements, so we provide a range of overload protectors with different trip temperatures, current ratings, and mounting configurations to suit diverse compressor models.
Get A Quote

Advantages of the product

Precision Thermal Response for Superior Motor Protection

Our compressor overload protector features a precision-calibrated bimetallic disc that responds to temperature changes with high accuracy, ensuring rapid and reliable disconnection of the electrical circuit when abnormal heat is detected. This precise thermal response is critical in preventing compressor overheating and subsequent failure, especially during high-load startup or harsh ambient conditions. Unlike generic protectors, our design incorporates a unique hysteresis mechanism that prevents nuisance tripping while still providing robust protection under genuine fault conditions. The protector is engineered to operate consistently across a wide temperature range, maintaining its trip characteristics even after repeated cycling, which is essential for long-term reliability. We meticulously select materials with stable thermal conductivity and mechanical resilience to ensure that the protector’s performance does not degrade over time. Additionally, our overload protectors are availa

Durable Construction with High Shock and Vibration Resistance

Compressors in refrigeration systems are subject to continuous vibration, mechanical shock, and thermal cycling during operation. Our compressor overload protectors are constructed with robust housing materials and internal components that can withstand these harsh conditions without loss of functionality. The sealed design protects the internal bimetallic element and contacts from moisture, dust, and corrosive gases that are often present in refrigeration environments. We utilize high-grade insulation materials that maintain electrical integrity even under high voltage conditions, ensuring safe operation throughout the product’s lifespan. The contact system is designed to handle high inrush currents without welding or excessive arcing, which is a common failure point in inferior protectors. Through extensive drop tests and accelerated life testing in our laboratory, we have verified that our protectors maintain their trip accuracy and electrical stability after millions of operations.

Comprehensive Certification and Global Compatibility

Our compressor overload protectors are designed to meet and exceed international safety standards, including UL, VDE, CQC, and CE certifications. These certifications are a testament to our commitment to quality and safety, providing our customers with the confidence that our products are acceptable in the most demanding global markets. We understand that electrical components must comply with regional regulations, and our protectors are engineered to accommodate voltage and frequency variations found in different countries, from 110V to 240V, 50Hz/60Hz. Our manufacturing process is ISO9001 certified, ensuring that every unit is produced under strict quality management systems. We also provide comprehensive technical documentation, including datasheets and installation guides, to assist our customers in integrating our protectors into their designs. With a global sales network, we can offer localized support and quick response times for any technical inquiries or custom requirements. O

Related products

CBB65 Refrigeration Capacitor 450V AC 50/60Hz Waterproof Motor Run Capacitor for Refrigerator Freezer Air Conditioner Compressor VIEW DETAILS

CBB65 Refrigeration Capacitor 450V AC 50/60Hz Waterproof Motor Run Capacitor for Refrigerator Freezer Air Conditioner Compressor

Commercial Manual Stainless Steel Refrigerator Freezer Plastic Coated Wire Mesh Shelf and Durable Basket VIEW DETAILS

Commercial Manual Stainless Steel Refrigerator Freezer Plastic Coated Wire Mesh Shelf and Durable Basket

Precision Single Double Gauge Valve, Air Conditioner Refrigerant Control Valve, High Pressure Resistance Manual Shut-off Valve, HVAC Refrigeration Manifold Gauge Replacement Valve Parts VIEW DETAILS

Precision Single Double Gauge Valve, Air Conditioner Refrigerant Control Valve, High Pressure Resistance Manual Shut-off Valve, HVAC Refrigeration Manifold Gauge Replacement Valve Parts

Portable DC 12V 24V Car Refrigerator, Low Noise Compressor Vehicle Fridge, Fast Cooling Mini Mobile Freezer for Truck RV Camping Travel Outdoor Use VIEW DETAILS

Portable DC 12V 24V Car Refrigerator, Low Noise Compressor Vehicle Fridge, Fast Cooling Mini Mobile Freezer for Truck RV Camping Travel Outdoor Use

Compressor overload protection is fundamental to the reliability and safety of refrigeration systems. A compressor overload protector monitors the compressor’s operating temperature and current, disconnecting power if either parameter exceeds safe limits. This prevents against catastrophic failures such as motor burnout, insulation breakdown, and even fire hazards. For manufacturers, incorporating a high-quality overload protector is not just about compliance; it’s about delivering products that inspire confidence and longevity. At Suzhou Eletek, we prioritize the development of overload protectors that respond with precision and consistency. Our protectors are engineered using advanced bimetallic technology that offers stable trip characteristics over a wide range of ambient temperatures, ensuring that the compressor is protected even in extreme conditions. We also recognize that rapid cycling of the compressor, a common issue in voltage fluctuations, can cause unnecessary tripping of inferior protectors. Our design incorporates a delayed reset feature that prevents nuisance interruptions while still providing immediate response to actual faults. This balance between sensitivity and reliability is what sets our overload protectors apart. Moreover, we address the diverse needs of the global market by offering protectors with different operating voltages and current ratings, all of which are rigorously tested to meet international safety standards. Our commitment to quality is reflected in our lean manufacturing processes and in-house laboratory testing, which includes thermal cycling and endurance tests. As a result, our customers can expect reduced warranty costs and enhanced brand reputation. Whether you are designing a new refrigeration product or seeking a reliable replacement part, our compressor overload protectors provide the essential protection that keeps systems running smoothly and efficiently. We invite you to explore our range and see why leading appliance manufacturers worldwide trust Eletek for their critical component needs.

Frequently Questions

How does a compressor overload protector work?

A compressor overload protector operates based on the principle of thermal and current sensing. It incorporates a bimetallic disc that is mechanically linked to normally closed contacts. When excessive current flows through the protector, it heats the bimetallic element directly (via a heater coil) or indirectly (via ambient heat from the compressor). When the temperature reaches the rated trip point, the bimetallic disc snaps, opening the contacts and cutting off power to the compressor. This action prevents the compressor from overheating and damaging its windings. Once the protector cools down to a safe temperature, the bimetallic disc returns to its original shape, closing the contacts and allowing the compressor to restart. The reset action is automatic, but some designs incorporate a manual reset button for added safety. The protector’s trip temperature and current rating are carefully selected based on the compressor’s motor characteristics and the application’s environment. Our
Common signs include the compressor not starting at all or starting intermittently. If the overload protector fails in the open position, it disconnects power, and the compressor will not run. This could be due to the bimetallic disc not resetting after a trip, which can happen if the protector is defective or if the ambient temperature remains high. Another sign is the compressor tripping too frequently, indicating that the protector’s trip point is too low or that there is an actual overcurrent or overheating issue that needs addressing. In some cases, the protector may fail in the closed position, which means it won’t protect the compressor, leading to overheating and eventual burnout. Physical signs such as discoloration, burning smell, or a deformed case indicate overheating. If you suspect a faulty overload protector, it’s crucial to have it replaced promptly with a certified replacement to avoid more extensive compressor damage. Regular maintenance checks on the protector’s oper
Not always. Overload protectors are matched to specific compressor characteristics, including current draw, motor power, and operating temperatures. Using a protector with incorrect specifications can lead to frequent nuisance tripping or, worse, inadequate protection. It’s essential to consult the compressor’s datasheet or technical manual to determine the appropriate overload protector. Factors such as locked rotor current, running current, and maximum allowable winding temperature guide the selection. Our wide range of overload protectors covers various ratings, and our team can help you identify the best match based on your compressor’s specifications. In some cases, an adjustable overload protector may be suitable for multiple compressors if the settings are properly calibrated. However, for critical applications, it’s recommended to use a dedicated protector designed for the specific compressor model to ensure maximum safety and reliability. We provide comprehensive cross-referen
Most overload protectors are not visible without disassembly, but some are equipped with a reset button or a test indicator. If your compressor is not running, and you suspect the overload protector, you can check for continuity using a multimeter at the protector’s terminals. If it is open (infinite resistance), it has tripped. Wait for it to cool down for at least 15-30 minutes; after cooling, it should reset automatically, and continuity should return. If it remains open after cooling, the protector may be defective. In some systems, the overload protector is externally mounted with a small button that can be pressed to manually reset it. Always ensure the power is disconnected before inspecting or servicing the protector. If the protector trips frequently, it indicates an underlying problem with the compressor or the electrical system, such as insufficient ventilation, refrigerant overcharge, or low voltage. Addressing the root cause is essential to prevent repeated trips and poten
The current relay (or start relay) is used to control the start winding circuit in single-phase motors, helping the compressor to start efficiently. It typically disconnects the start winding once the motor reaches a certain speed. The overload protector, on the other hand, is a safety device that protects the compressor from overheating and overcurrent. While they are often used together, they serve different functions. A current relay typically does not interrupt the main power unless a fault occurs; instead, it manages the starting sequence. In contrast, the overload protector sits in the main power circuit and cuts off power entirely if excessive heat or current is detected. Both are critical for safe operation: the relay ensures proper starting, while the overload protector ensures the motor does not overheat during running or locked rotor conditions. Our range includes both components, and we offer combined solutions that are precisely matched to compressor models for optimal per

Related article

The Importance of Condenser Fans Blades Balance

20

Jul

The Importance of Condenser Fans Blades Balance

The Vital Role of Dynamic Balancing in Condenser Fans Blades Achieving optimal performance in refrigeration and HVAC systems often hinges on the smallest details, with condenser fans standing as one of the most critical components for thermal managem...
View More
Why Brass Fittings Are Ideal for Connectors

21

Jul

Why Brass Fittings Are Ideal for Connectors

The Strategic Superiority of Brass Fittings in Industrial Connectivity In the complex landscape of industrial infrastructure, where system downtime can translate into significant financial losses, every connection point serves as a critical link. Man...
View More
How to Identify Genuine Auto AC Parts

24

Jul

How to Identify Genuine Auto AC Parts

The Critical Importance of Sourcing Genuine Auto AC Parts In the modern automotive industry, maintaining a comfortable cabin environment is about more than just convenience; it is essential for driver focus, passenger safety, and overall vehicle heal...
View More
How Condenser Efficiency Impacts HVAC System Performance

05

Aug

How Condenser Efficiency Impacts HVAC System Performance

The Vital Role of Heat Rejection in Modern Cooling In the complex ecosystem of heating, ventilation, and air conditioning (HVAC) systems, attention often gravitates toward the cooling coils inside a building or the heavy-duty compressor running in th...
View More

Customer Testimonials

John Mitchell
Reliable Performance in Harsh Conditions

We have been using Suzhou Eletek’s compressor overload protectors in our commercial cold room units for over two years. The protectors have consistently prevented compressor failures, even in environments with high ambient temperatures and voltage fluctuations. The build quality is exceptional, and we’ve had zero field failures. Installation was straightforward, and the technical support team was responsive in helping us select the right model. This product has significantly reduced our maintenance costs and improved customer satisfaction. We highly recommend Eletek for anyone needing dependable overload protection for refrigeration systems.

Anna Schmidt
Quality That Meets International Standards

As an OEM manufacturer of refrigerators, we require components that meet strict certifications and deliver consistent quality. Eletek’s overload protectors are certified and have passed our rigorous testing with flying colors. They integrate seamlessly into our production line, and we have seen a noticeable decrease in warranty claims related to compressor failures. The performance is reliable, and the product’s design allows for efficient thermal dissipation. We appreciate their attention to detail and their willingness to customize the protectors to our specific needs. Eletek is a trustworthy partner for our business.

Get a Free Quote

Our representative will contact you soon.
Email
Mobile/WhatsApp
Name
Company Name
Message
0/1000
refrigerator glass shelf refrigerator door hinge fridge evaporator fan refrigerator fan motor suction accumulator compressor overload protector hermetic reciprocating compressor
Advanced Precision Temperature Sensing

Advanced Precision Temperature Sensing

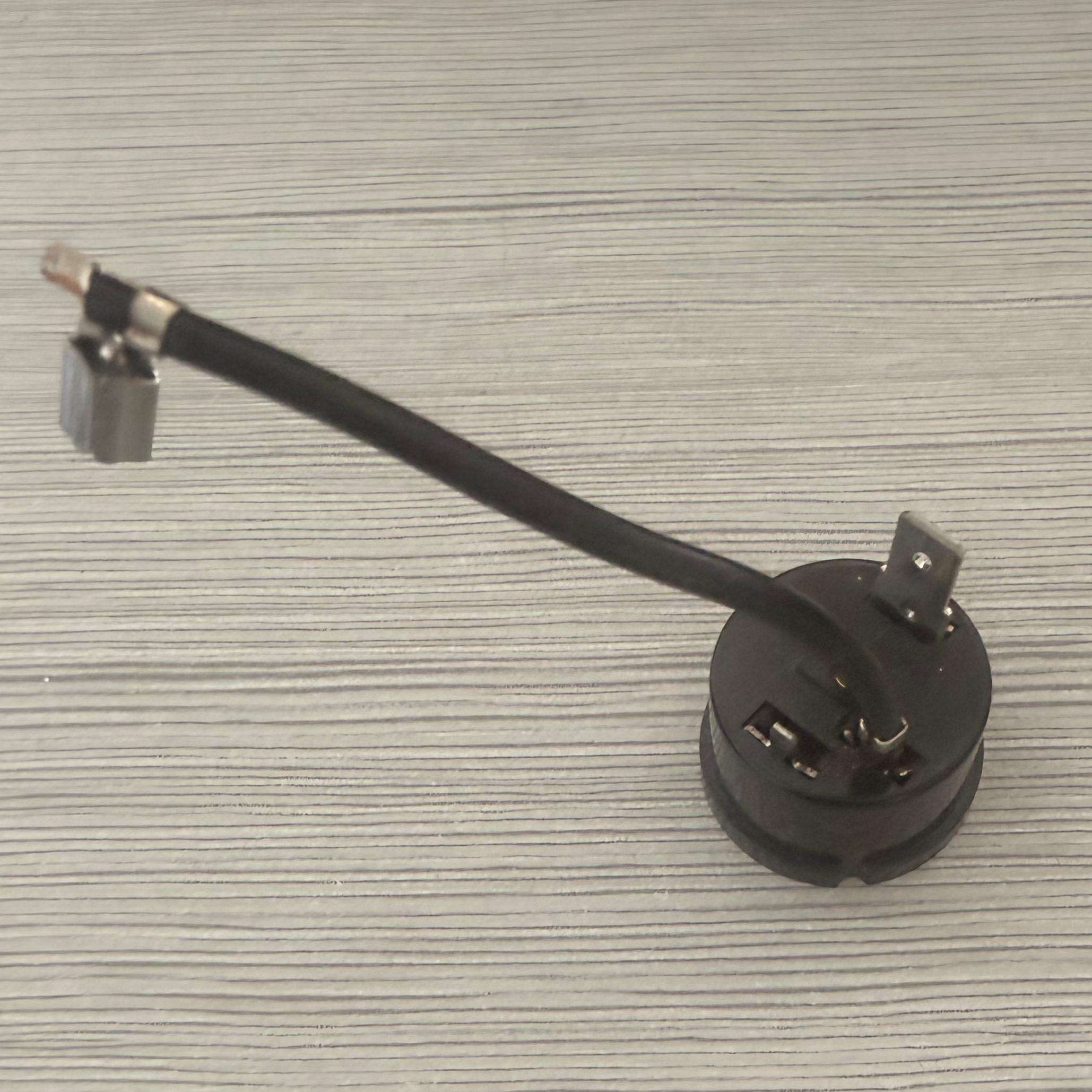

Our compressor overload protector utilizes a precision-engineered bimetallic disc that undergoes a snap-action response when exposed to overtemperature. The disc’s composition is optimized to have a narrow tolerance range, ensuring that trip points are consistent across production batches. This precision allows the protector to react within milliseconds, preventing the compressor from reaching critical temperatures that can degrade motor insulation. Furthermore, the protector’s design includes a current-sensing heater element that provides a combined thermal-magnetic response, offering protection against both slow overheating and sudden current spikes. This dual-sensing approach is superior to simple thermal protectors because it detects locked rotor conditions faster, thereby reducing the risk of burnout.
Environmental Sealing and Corrosion Resistance

Environmental Sealing and Corrosion Resistance

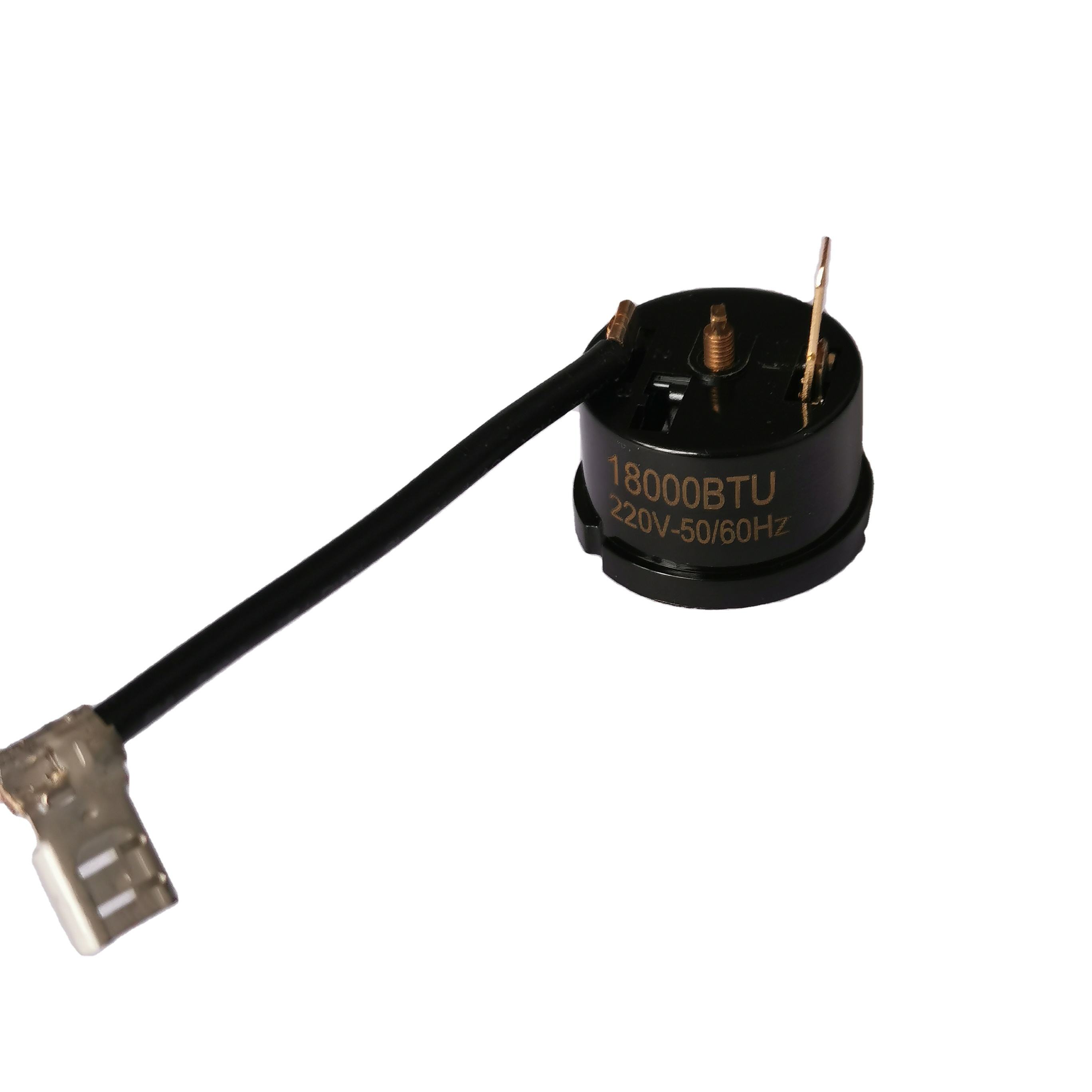

The compressor environment is often humid and can contain refrigerant oils that degrade unprotected electrical components. Our overload protector is hermetically sealed using a high-temperature resistant epoxy, creating a barrier against moisture, dust, and chemical contaminants. This sealing not only prolongs the life of the internal contacts but also ensures that the trip characteristics remain stable over time. We’ve subjected our protectors to salt spray and humidity testing to simulate worst-case environments, and they have exhibited no degradation in performance. The terminal connections are made of nickel-plated brass to prevent corrosion and ensure low contact resistance. This robust construction directly translates into enhanced safety, as it prevents short circuits and electrical leaks that could damage the compressor or even cause fires. For applications in coastal areas or high-humidity climates, our protectors provide an extra layer of protection that is often overlooked.
