Product brief description
Premium digital manifold is a professional intelligent testing instrument specially designed for HVAC and refrigeration pipeline installation, debugging and daily maintenance. Adopting industrial dual high-precision pressure sensors and intelligent chip algorithm system, this digital manifold supports real-time dual-channel pressure and temperature monitoring, automatic superheat and subcooling calculation, multi-unit switching and data recording functions. Built-in massive mainstream refrigerant database, it replaces traditional error-prone mechanical gauges with digital high-precision testing. Featuring waterproof dustproof structure, ultra-long battery life and high-definition backlight display, it provides accurate, efficient and standardized data support for refrigerant filling, pressure holding test, vacuum detection and system fault diagnosis, serving as an essential professional tool for refrigeration engineering maintenance.
Product detailed description

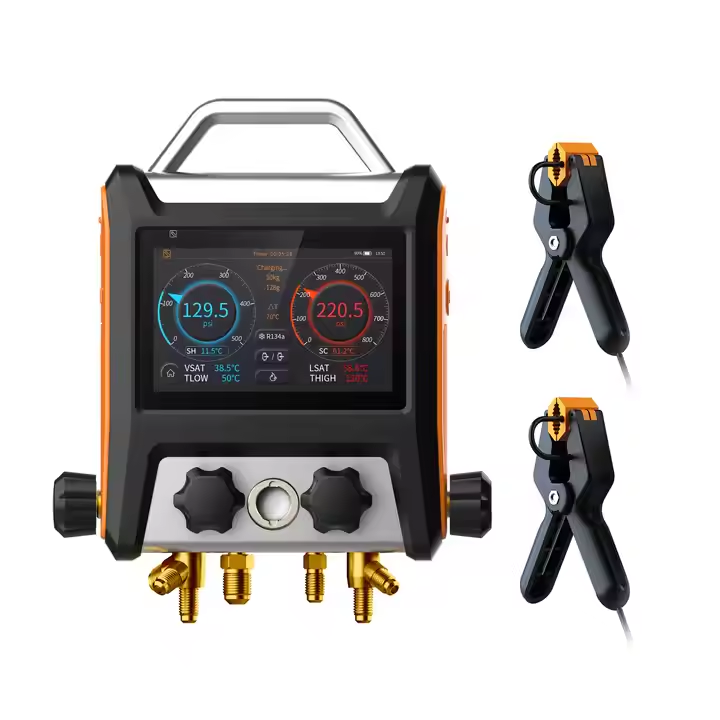

Smart High Precision Digital Manifold for HVAC & Refrigeration System Testing
Our digital manifold is a new-generation upgraded intelligent testing device developed to solve the multiple pain points of traditional mechanical manifold gauges in global HVAC and refrigeration maintenance. Traditional pointer gauges rely on mechanical spring induction, which inevitably suffers from visual reading deviation, slow response, single detection function and unstable data floating during construction. In daily refrigeration work including pipeline pressure testing, vacuum pumping, refrigerant charging and system operation inspection, traditional gauges cannot capture subtle pressure changes and real-time temperature fluctuations accurately. Empirical judgment based on mechanical pointer easily leads to unstandardized construction, inappropriate refrigerant filling volume, unstable system operating pressure, reduced refrigeration efficiency and even hidden equipment failures. Our professional digital manifold completely upgrades the traditional testing mode, integrating pressure detection, temperature monitoring, automatic data calculation and intelligent analysis into one compact device, helping maintenance teams complete standardized, accurate and efficient refrigeration system commissioning.
Industrial Dual Sensor & Ultra-Stable Detection Performance
This digital manifold is equipped with upgraded industrial-grade high and low pressure dual sensors, matched with professional temperature compensation algorithm to eliminate data deviation caused by ambient temperature difference, airflow and on-site vibration. The pressure detection accuracy reaches ±0.5%FS, and the temperature error is controlled within ±1°C, far exceeding the precision standard of ordinary mechanical gauges and low-end digital gauges. With millisecond-level high-frequency data sampling, the device can real-timely capture tiny pipeline pressure fluctuation and temperature change during equipment startup, operation and defrosting. It maintains stable and consistent reading data in both static pressure holding state and dynamic system operating state, effectively avoiding construction misjudgment caused by data lag and drift, ensuring every debugging operation conforms to professional HVAC engineering standards.
Automatic Superheat & Subcooling Calculation for Accurate Fault Judgment
Different from traditional tools that require manual data query and complicated formula calculation, this digital manifold builds in exclusive professional HVAC operating algorithm and 88+ mainstream refrigerant database. It covers traditional refrigerants, new environmentally friendly refrigerants and A2L low-flammability refrigerants such as R22, R410A, R134a, R32 and R407C, fully matching all household and commercial refrigeration equipment. The device can synchronously collect real-time pressure and temperature data, automatically calculate superheat and subcooling values in one second, and intuitively feedback the operating state of the refrigeration system. It helps technicians quickly judge common problems such as insufficient refrigerant, overcharging, poor heat dissipation, system blockage and abnormal operating pressure, greatly improving the accuracy and efficiency of fault diagnosis and equipment debugging.
Multi-Functional Testing Modes & Full-Scenario Engineering Adaptation
Integrating multiple core professional testing functions, this digital manifold supports real-time pressure and temperature monitoring, pipeline pressure holding leakage test, vacuum degree detection and running data recording. It realizes one-machine full-process operation from vacuum pumping detection, pipeline tightness inspection to quantitative refrigerant filling and system operation tracking, avoiding frequent tool replacement in traditional construction. The device supports one-key switching of multiple international units including PSI, Bar, MPa, kPa, °C and °F, adapting to different regional construction standards and engineer operating habits. The built-in data recording and trend analysis function can record long-term operating data of refrigeration equipment, facilitate after-sales fault analysis, project acceptance and equipment parameter sorting, greatly improving the professionalism and standardization of refrigeration engineering construction.
HD Backlight Display & Humanized Waterproof Design
Adopting high-definition LCD backlight display screen, the digital manifold presents clear and delicate data numbers, which can be clearly identified in dark indoor environments, strong outdoor sunlight and narrow equipment gaps. The simplified one-key operating menu reduces complex operational steps, realizing fast refrigerant selection, mode switching and unit conversion without professional learning cost. The whole machine adopts integrated waterproof, dustproof and anti-drop structural design, with high-strength engineering plastic shell and sealed internal circuit. It can resist on-site dust, condensed water, water mist and slight collision, adapting to complex and changeable construction environments such as outdoor maintenance, high-altitude operation and narrow equipment room debugging.
Low Power Consumption & Ultra-Long Standby Durability
Built-in high-capacity low-power lithium battery and intelligent power management system, this digital manifold features ultra-long standby and continuous working performance. It supports several months of long-term standby and all-day continuous on-site construction without frequent charging. The automatic sleep and power-off function effectively reduces invalid power consumption and prolongs battery service life. The internal circuit and sensor components pass strict industrial aging test and vibration test, with stable performance and strong durability. It can adapt to long-term high-frequency repeated use of engineering teams, effectively reducing tool damage rate and daily maintenance cost.
Wide Compatibility & Global Standard Certification
This universal digital manifold is widely applicable to household split air conditioners, cabinet air conditioners, refrigerators, freezers, commercial display cabinets, fresh-keeping equipment, medium and large cold storage units, heat pump systems and HVAC central air conditioning projects. All detection data fully complies with international HVAC industry testing standards with high authenticity and credibility. With the advantages of high precision, multi-function, portable use and cost-effectiveness, it has become a mainstream replacement product for traditional mechanical gauges, widely exported to global markets and recognized by professional refrigeration engineering teams and after-sales maintenance companies.

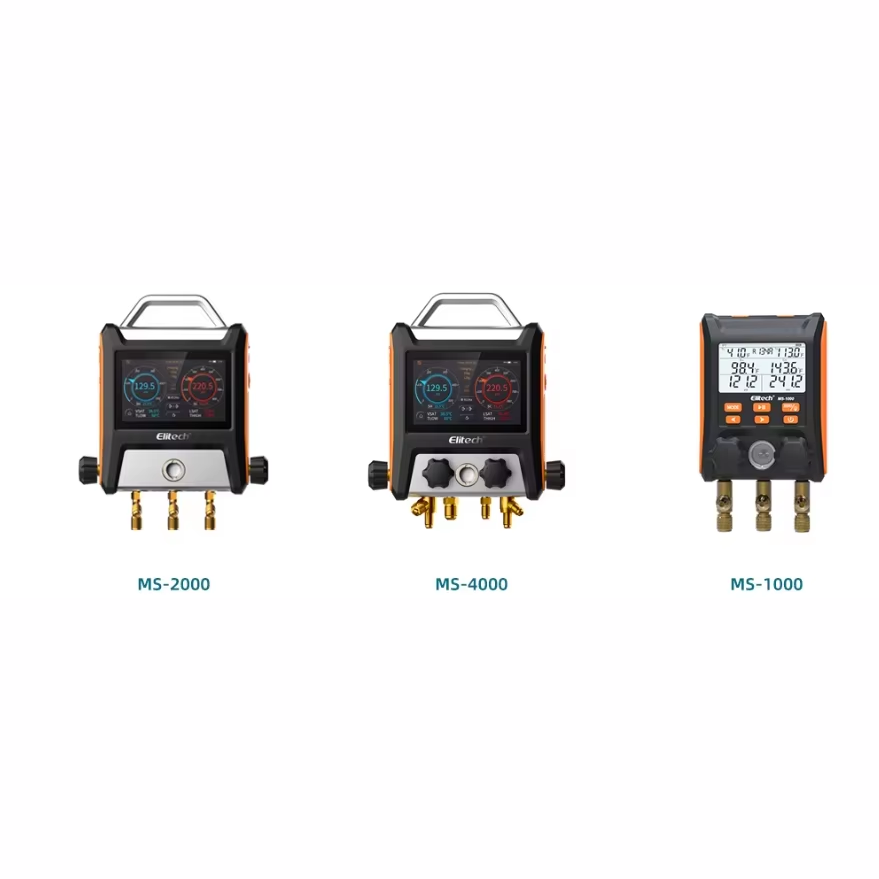

Product Specifications
MODEL |
PRESSURE RANGE |
SAMPLING RATE |
BATTERY LIFE |
MAIN APPLICATION |
DM-01 |
0~5000KPa Basic Range |
1.5s |
3 Months Standby |
Household Small Refrigeration Equipment Maintenance |
|
|
|
|
|
DM-02 |
0~6000KPa Standard Range |
1.2s |
4 Months Standby |
Household Air Conditioner & Freezer Debugging |
DM-03 |
0~8000KPa Enhanced Range |
1.2s |
5 Months Standby |
Commercial Display Cabinet & Refrigeration Unit Testing |
DM-04 |
0~10000KPa High Pressure Range |
1.0s |
6 Months Standby |
Medium & Large Cold Storage & Heat Pump System |
DM-05 |
Full Range Industrial Grade |
0.8s Ultra Fast |
8 Months Ultra Long Standby |
Professional HVAC Engineering & Batch Detection |
FAQ
Q1: What is a digital manifold used for?
A: Digital manifold is a professional intelligent testing tool specially used for HVAC and refrigeration system maintenance. It is mainly applied to real-time pipeline pressure and temperature monitoring, pressure holding leakage test, vacuum degree detection, and automatic superheat and subcooling calculation, helping technicians complete accurate refrigerant filling and system fault diagnosis.
Q2: How many refrigerants can this digital manifold support?
A: This digital manifold is built with 88+ mainstream refrigerant databases, covering traditional refrigerants, new eco-friendly refrigerants and A2L flammable refrigerants, including R22, R410A, R134a, R32, R407C and more, fully meeting the testing needs of all mainstream refrigeration equipment on the market.
Q3: Is the testing data accurate and stable?
A: Yes. Adopting industrial dual pressure sensors and professional temperature compensation technology, it effectively resists on-site vibration, temperature difference and airflow interference. The pressure accuracy reaches ±0.5%FS and temperature accuracy ±1°C, ensuring stable, real and reliable testing data without drift or error.
Q4: Does it support automatic superheat and subcooling calculation?
A: Absolutely. Built-in professional HVAC algorithm program, the manifold can synchronously collect pressure and temperature data, automatically calculate superheat and subcooling values in real time, allowing workers to quickly judge the operating status and hidden faults of refrigeration systems.
Q5: What testing functions does this device have?
A: It integrates multiple professional functions, including real-time pressure & temperature monitoring, pipeline pressure holding leakage test, vacuum pumping detection and operating data recording. One machine realizes full-process testing from equipment installation, debugging to daily maintenance.
Q6: Is the operation simple for new users?
A: Yes. The manifold adopts intuitive one-key menu design, supporting one-key unit switching, refrigerant selection and mode adjustment. The operation logic is simple and clear, requiring no professional training, which is friendly for novice maintenance workers.
Q7: How about the battery life and environmental adaptability?
A: Equipped with low-power intelligent power management system, it supports up to 8 months of ultra-long standby. The whole machine is waterproof, dustproof and drop-resistant, adapting to complex construction environments, and the backlight screen ensures clear reading in dark and strong light conditions.
Q8: What is your packaging and shipping solution?

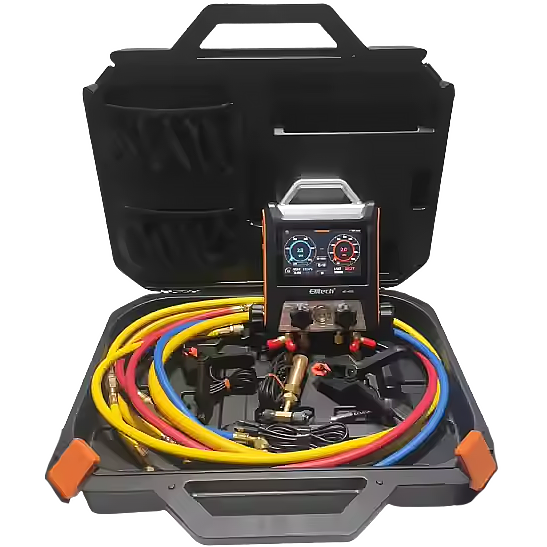

A: Each digital manifold is individually packed with shockproof, dust-proof and moisture-proof materials to protect internal precision sensors and screens. Bulk orders adopt reinforced standard export cartons, supporting long-distance sea freight and global engineering wholesale orders.
