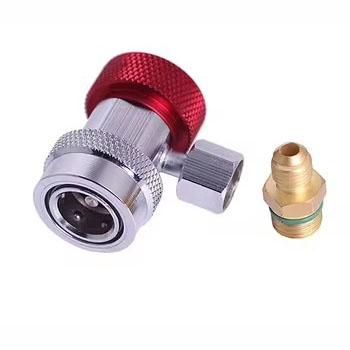

Product brief description
Premium quick couple is a tool-free fast connection fitting specially designed for HVAC and refrigeration pipeline systems. Adopting high-precision integrated molding and multi-layer sealing structure, this quick coupling features high pressure resistance, excellent air tightness and easy installation. It realizes fast plug-and-play pipeline connection without welding, flaring or professional tools. Effectively preventing refrigerant leakage and pipeline loosening, it is a safe, efficient and cost-effective connecting accessory for refrigeration equipment maintenance and pipeline renovation.
Product detailed description
High Tightness Tool-Free Quick Couple for HVAC & Refrigeration Pipeline Connection
Our quick couple is a new-generation efficient pipeline connecting fitting developed to solve the pain points of traditional refrigeration pipe connection. Traditional copper pipe connection usually requires complicated processes such as welding, flaring and thread cutting, which relies on professional tools and skilled construction workers. The operation is time-consuming, labor-intensive and highly dependent on technology, and poor construction precision often leads to pipeline leakage, system pressure drop and refrigeration efficiency reduction. Our quick couple completely subverts the traditional connection process. With innovative tool-free quick plug-in design and professional multi-stage sealing structure, it realizes fast, stable and zero-leakage connection of refrigeration copper pipes, greatly simplifying pipeline construction procedures and improving overall installation efficiency.
High-Strength Integral Molding & Excellent Pressure Resistance
This quick couple adopts high-quality industrial copper alloy raw materials and one-piece precision forging molding process. The overall structure is compact, firm and free of internal pores and structural defects. After strict pressure resistance testing, the fitting maintains stable structural performance under long-term high-pressure operation, not easy to deform, crack or loose. Compared with ordinary thin-wall pipe joints with weak pressure resistance, our quick couple has stronger bearing capacity, fully adapting to the working pressure of household and commercial refrigeration systems. It can resist pipeline vibration and pressure impact during equipment operation, ensuring long-term stable connection without falling off or failure.
Multi-Layer Sealing Structure & Zero Refrigerant Leakage
The quick couple is equipped with imported high-elasticity sealing ring and multi-stage fitting locking structure. The precision-fit inner cavity perfectly matches the outer diameter of the copper pipe, forming a multi-channel closed protective space. The high-performance sealing accessory has excellent compression resilience, low temperature resistance and aging resistance, which can maintain stable sealing performance in long-term low-temperature and high-pressure refrigeration working environment. It effectively isolates air infiltration and refrigerant overflow, thoroughly solves common problems of traditional joints such as poor air tightness, slow leakage and aging failure, and ensures the vacuum degree and refrigeration efficiency of the entire HVAC system.
Tool-Free Plug-and-Play & High Construction Efficiency
Different from traditional pipe fittings that require welding, flaring and screw fastening, this quick couple supports pure manual plug-in installation without any professional tools, open flame operation and complex debugging. The standardized clamping structure realizes one-time rapid locking and positioning, completing pipeline docking in seconds. It completely avoids safety hazards such as open flame welding and high-temperature operation, reduces construction threshold and operational risks, and is very suitable for narrow indoor spaces, high-altitude installation and on-site rapid maintenance and renovation projects. It greatly shortens construction cycle and improves the overall efficiency of refrigeration engineering construction.
Low Temperature Resistant & Anti-Aging Durable Performance
All core components of the quick couple undergo professional anti-corrosion, anti-oxidation and low-temperature toughening treatment. The metal body is resistant to oxidation and rust, while the sealing ring maintains excellent elasticity and toughness in ultra-low temperature environment without hardening, cracking or aging. It can adapt to the long-term alternating working state of refrigeration system startup and shutdown, resisting pipeline vibration, temperature difference change and environmental moisture erosion. The long-life structural design avoids frequent replacement and secondary maintenance, effectively reducing the comprehensive operation and maintenance cost of refrigeration equipment.
Universal Specification & Wide Industry Compatibility
This quick couple covers all mainstream specifications of refrigeration copper pipes, compatible with household air conditioners, refrigerators, freezers, commercial cold storage, display cabinets and HVAC central air conditioning systems. It supports fast connection and maintenance of copper pipes of different calibers, widely applicable for new equipment assembly, old pipeline replacement, leakage repair and engineering batch supporting. The unified industrial standard size ensures precise docking with conventional refrigeration pipelines, with extremely high universality and practicability for global refrigeration engineering projects.
Standard Process Inspection & Global Market Adaptation
Every quick couple undergoes strict air tightness test, pressure resistance test and size inspection before delivery to ensure zero leakage and qualified performance. With stable quality, simple operation and cost-effective advantages, it has become a mainstream supporting fitting in the refrigeration and HVAC industry. It is widely used in factory supporting assembly, engineering construction, after-sales maintenance and wholesale supply, exported to Southeast Asia, Middle East, Europe, America and other global markets, winning consistent recognition from overseas engineering teams and merchants.
Product Specifications
MODEL |
APPLICABLE PIPE SIZE |
OUTER DIAMETER |
WORKING PRESSURE |
MAIN FEATURE |
QC-01 |
1/4" 6mm Copper Pipe |
10mm |
3.5MPa |
Mini Pipeline Quick Connection |
QC-02 |
3/8" 9mm Copper Pipe |
13mm |
3.5MPa |
Air Conditioner Pipe Connection |
QC-03 |
1/2" 12mm Copper Pipe |
16mm |
3.0MPa |
Commercial Unit Pipeline Docking |
QC-04 |
5/8" 16mm Copper Pipe |
20mm |
3.0MPa |
Large HVAC Pipe Connection |
QC-05 |
Universal Assorted Size |
Combined Spec |
3.0-3.5MPa |
Full-Scenario Engineering Matching |
FAQ
Q1: What is a quick couple used for?
A: Quick couple is a professional fast connecting fitting for refrigeration and HVAC copper pipelines. It is used for rapid docking and fixing of copper pipes, replacing traditional welding and flaring processes. It realizes fast pipeline assembly and maintenance, effectively preventing refrigerant leakage and ensuring stable operation of refrigeration systems.
Q2: What material is the quick couple made of?
A: It adopts high-purity copper alloy integral forging molding with high structural strength, pressure resistance and rust resistance. Equipped with high-elastic anti-aging rubber sealing ring, it maintains stable sealing performance in low-temperature and high-pressure refrigeration working environment for a long time.
Q3: Does the quick couple require welding or professional tools?
A: No. This quick couple adopts tool-free plug-in design, which does not require welding, flaring or any professional equipment. The whole installation process is completed manually, safe and efficient without open flame operation risks.
Q4: Can the quick couple prevent refrigerant leakage?
A: Absolutely. Adopting multi-layer sealing and precision locking structure, the quick couple features ultra-high air tightness, which can effectively lock internal refrigerant and isolate external air infiltration. It solves the long-term leakage problem of traditional welded joints and ensures zero-leakage operation of the pipeline system.
Q5: What pipe sizes are compatible with this quick couple?
A: It covers all mainstream refrigeration copper pipe specifications including 6mm, 9mm, 12mm and 16mm, corresponding to 1/4", 3/8", 1/2" and 5/8" pipe sizes. It is widely compatible with household air conditioners, refrigerators, freezers and commercial HVAC refrigeration equipment.
Q6: Is the quick couple reusable?
A: Yes. The high-precision locking structure and durable sealing ring support repeated disassembly and assembly. It is perfect for equipment debugging, pipeline testing and secondary maintenance work, effectively saving engineering material costs.
Q7: Is the quick couple suitable for long-term high-pressure operation?
A: Definitely. The integrally forged copper alloy body has strong pressure resistance and vibration resistance. It can withstand long-term system operating pressure and pipeline vibration without loosening or deformation, meeting the long-term stable operation requirements of commercial and industrial refrigeration systems.
Q8: What is your packaging and shipping solution?
A: Each quick couple is individually packed with anti-collision and moisture-proof protection. Bulk orders adopt standard export cartons with wooden frame reinforcement to prevent extrusion damage during long-distance transportation, supporting global sea freight and engineering wholesale orders.
