Product brief description
Our professional air conditioning hose is an essential connecting pipeline for all automotive and household commercial refrigeration & air conditioning systems. Constructed with multi-layer composite reinforced rubber structure, this AC hose features excellent high-pressure bearing capacity, refrigerant corrosion resistance, high temperature resistance and anti-oxidation aging performance. It is perfectly compatible with mainstream refrigerants including R134a, R410A, R22, R407C, widely used for car air conditioning pipelines, household split air conditioners, central air conditioning, freezers, cold storage and heat pump unit refrigerant circulation connection. The flexible design is easy to cut and install, tight internal sealing thoroughly prevents refrigerant leakage; reinforced braided layer effectively avoids pipe expansion, cracking and burst under long-term high-pressure operation. Ideal bulk purchase spare part for auto repair garages, HVAC contractors, auto parts wholesalers and refrigeration maintenance technicians worldwide.
Product detailed description

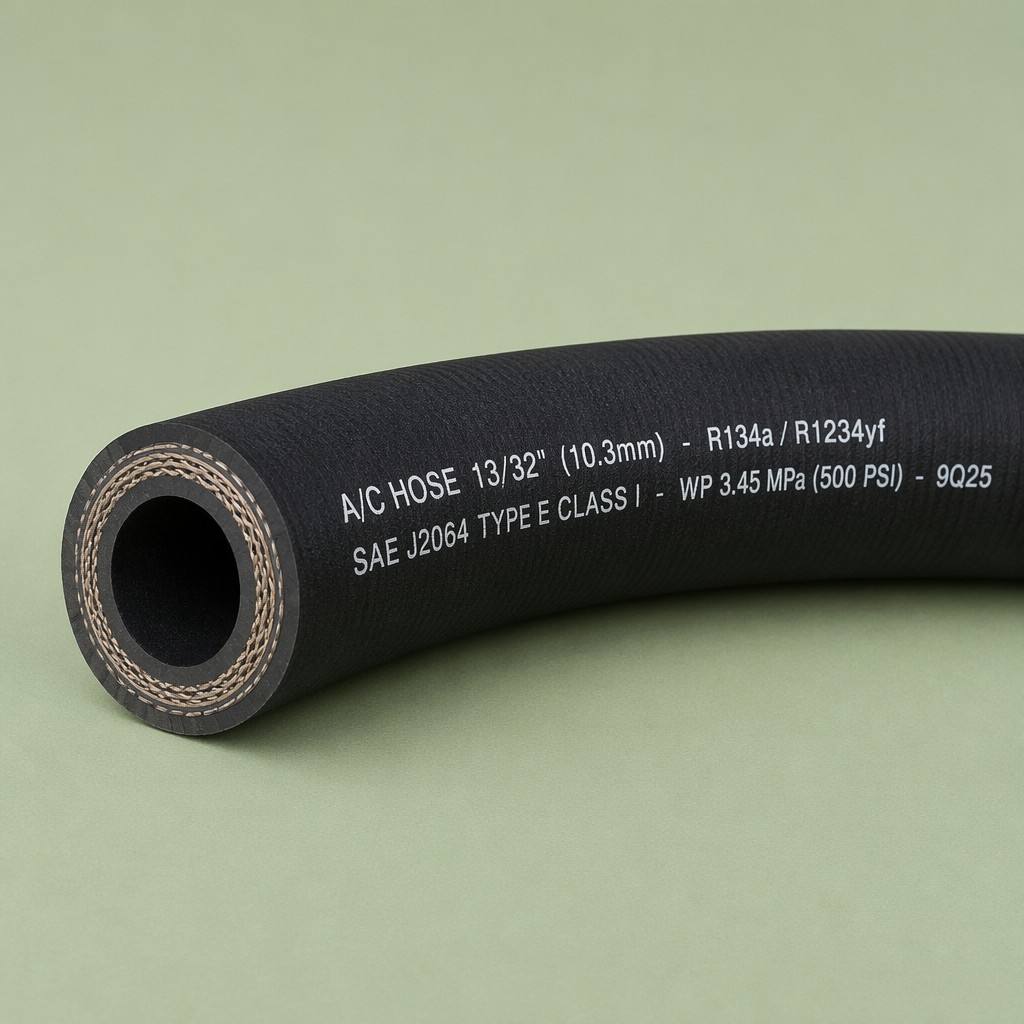

5-Layer Composite Reinforced Structure, Super High Pressure & Burst Resistance Different from cheap single-layer rubber hoses on the market, our AC air conditioning hose adopts standard five-layer integrated extrusion molding structure, each layer undertakes independent functional effects:
Inner sealing layer: Butyl rubber inner tube, ultra-tight molecular density, completely isolate refrigerant penetration, zero leakage of coolant gas, resistant to refrigerant corrosion;
Barrier isolation layer: Special nylon barrier layer, effectively prevent refrigerant molecular permeation, solve the problem of slow refrigerant loss of ordinary hoses for a long time;
Middle reinforced braided layer: High-strength polyester fiber braided net wrapped around the tube wall in all directions, greatly enhancing the tensile strength and pressure resistance of the pipeline, effectively avoiding pipe bulging, deformation and burst under instantaneous pressure surge;
Buffer rubber layer: Absorb pipeline vibration generated by compressor operation, reduce pipeline fatigue damage;
Outer protective layer: Weather-resistant EPDM outer rubber skin, resist sunlight ultraviolet radiation, rainwater erosion, engine high-temperature baking and oil splashing. The rated working pressure reaches 3.5MPa, burst pressure up to 12MPa, fully meet the high-pressure operation requirements of all automobile and household air conditioning systems.
Wide Compatibility With All Mainstream Refrigerants & Lubricating Oil This air conditioning pipeline has excellent chemical inertness, compatible with almost all commonly used refrigerants in the global refrigeration industry: R134a, R410A, R22, R407C, R1234yf and other coolants. Meanwhile, it can be well mixed with mineral oil, POE oil, PVE compressor lubricating oil, no chemical reaction will occur between the pipe wall and refrigeration oil, will not cause rubber swelling, softening or hardening embrittlement. It can be universally used for old and new air conditioning equipment without worrying about refrigerant model mismatch leading to pipeline damage.
Extreme Temperature Adaptability, No Cracking Under Cold & Hot Alternation The whole hose can work stably in the temperature range of -40℃ ~ +125℃. In winter low-temperature environment, the pipeline will not harden, stiff or brittle crack; under the high temperature baking of automobile engine compartment in summer, the outer rubber layer will not melt, soften or peel off. It perfectly adapts to the extreme temperature climate of tropical, frigid and temperate regions around the world, and maintains stable flexibility and sealing performance all year round.
Flexible & Easy Cutting Installation, Good Shock Absorption Performance The hose maintains moderate flexibility, can be freely bent and arranged according to the internal space layout of the vehicle or air conditioning unit, no rebound deformation after bending, convenient for technicians to lay pipelines in narrow gaps. The pipe body can be cut arbitrarily according to the required length with a professional pipe cutter, matched with standard AC pipe fittings, compression joints and manifold gauges on the market, easy to complete assembly and connection. In addition, the multi-layer structure can effectively buffer the vibration transmitted by the compressor during operation, reduce pipeline loosening caused by long-term vibration, and further avoid leakage risks at the joint.
Anti-Aging, UV & Oil Resistant Outer Rubber Surface The outer layer is made of high-performance EPDM weather-resistant rubber, added with anti-ultraviolet, anti-oxidation additives. Long-term outdoor exposed use will not appear rubber chalking, cracking, discoloration and aging; it also has excellent oil resistance, automobile engine oil, hydraulic oil splashed on the pipe surface will not corrode the outer wall, which is especially suitable for harsh under-hood working environment of various vehicles.

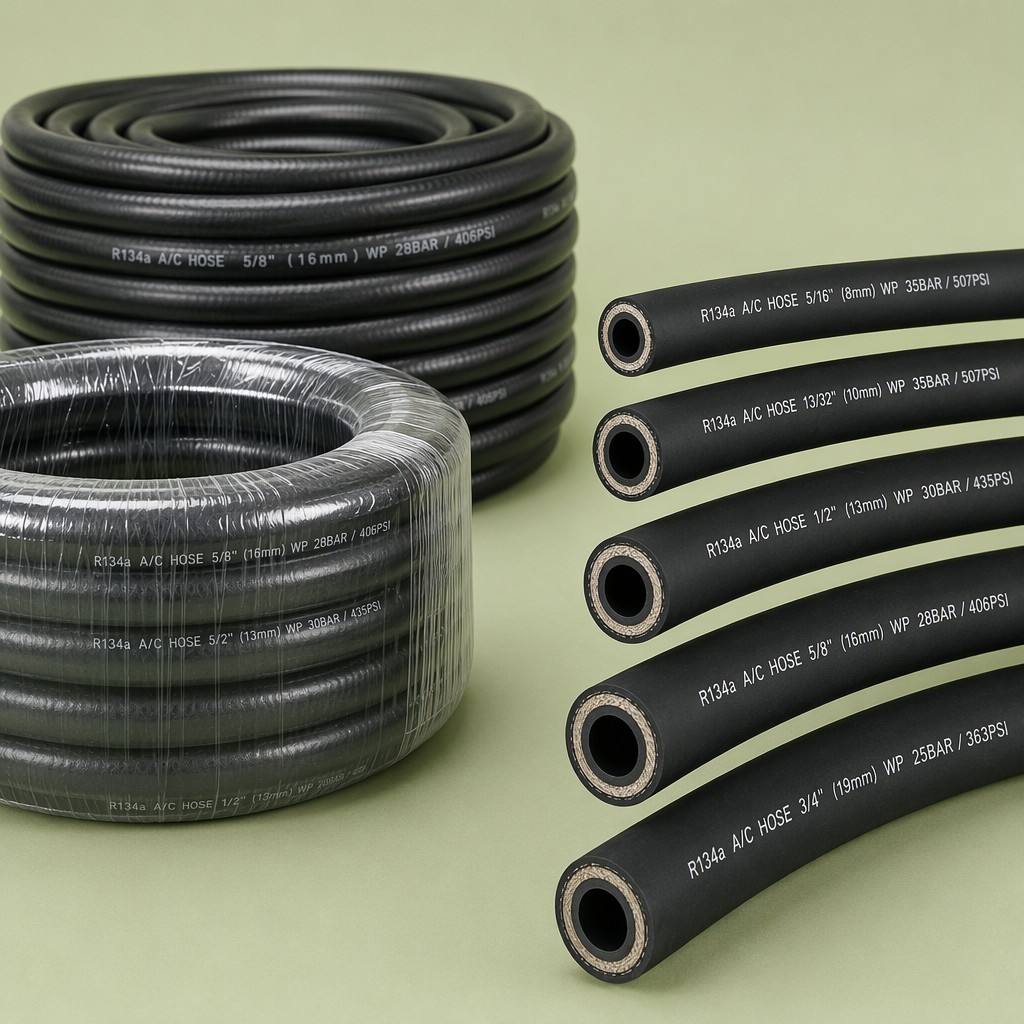

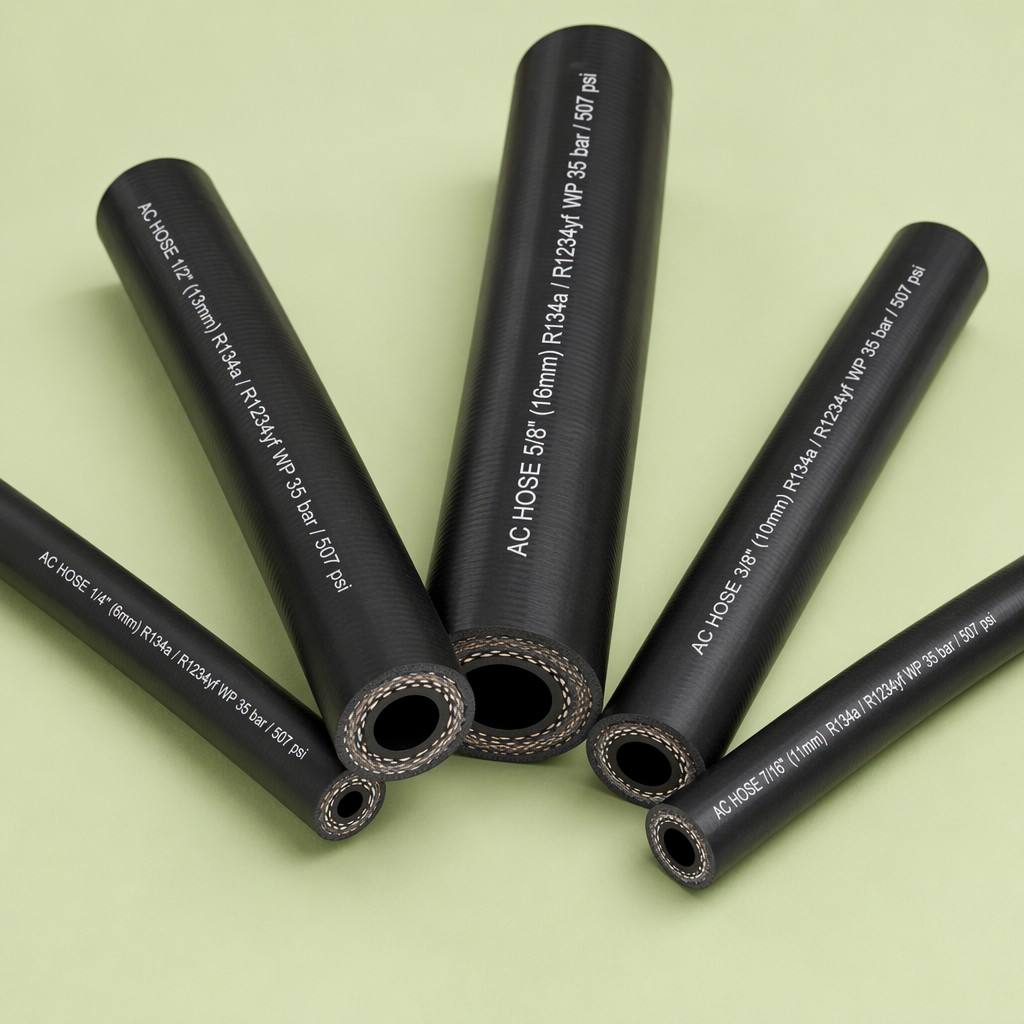

Multiple Caliber Specifications Available, Meet Diverse Usage Demands We supply complete size options of air conditioning hoses including standard SAE automotive specifications and household HVAC pipe diameters, covering small-diameter liquid pipelines, large-diameter air suction pipelines, high-pressure exhaust pipelines of car air conditioners, as well as connecting pipelines for split air conditioners, heat pumps and cold storage equipment. Wholesale customers can customize pipe length, inner and outer diameters according to project demands.
Strict Factory Quality Control Testing
Each batch of air conditioning hoses will pass a full set of professional performance tests before delivery:
Hydraulic burst pressure test: Verify the maximum pressure bearing limit of the pipe body;
Air tightness leakage test: Fill high-pressure gas to check for tiny air leakage inside the pipeline;
Cold and hot alternating cycle aging test: Simulate seasonal temperature changes for long-term endurance inspection;
Refrigerant compatibility immersion test: Soak the hose in different refrigerants and lubricating oil to detect rubber stability;
UV weathering test: Simulate outdoor sunlight exposure to check anti-aging ability. All unqualified semi-finished products are eliminated to ensure each roll of hose has consistent reliable quality.
Wide Application Scenarios
Automotive Air Conditioning Maintenance: For sedans, SUVs, pickup trucks, vans, light commercial vehicles R134a/R1234yf car AC pipeline replacement, leakage repair, whole vehicle refrigeration pipeline renovation;
Household HVAC Field: Wall-mounted/floor-standing split air conditioners, inverter heat pumps, duct central air conditioning refrigerant connecting pipeline laying and replacement;
Commercial Refrigeration Equipment: Supermarket display freezers, catering cold storage, industrial chillers, refrigerated truck refrigeration system pipeline supporting;
HVAC Engineering Wholesale: Refrigeration contractors, auto parts distributors bulk stocking for daily maintenance and project supporting supply.
Practical Benefits After Replacement
Replacing aging, leaking original air conditioning pipelines with our reinforced AC hose can thoroughly solve refrigerant leakage, insufficient cooling effect and frequent air conditioning failures. Stable high-pressure sealing reduces repeated refrigerant filling costs; excellent anti-aging performance extends pipeline service life by more than 3 times compared with ordinary hoses; shock absorption structure protects the entire refrigeration system, avoiding compressor damage caused by pressure instability. With factory direct sales cost performance, it is the most trustworthy pipeline accessory for global refrigeration practitioners.
Product Specifications
Number |
Dim (mm) |
Inch |
I.D. (mm) |
O.D. (mm) |
Wall (mm) |
Work Press. (Mpa) |
Burst Press. (Mpa) |
Bend Rad (mm) |
Weight (g/m) |
C8.0 |
8 |
5/16" |
8.0±0.4 |
15.2±0.5 |
3.6 |
3.5 |
23 |
55 |
146 |
C10.0 |
10 |
13/32" |
10.2±0.3 |
17.2±0.4 |
3.5 |
3.5 |
22 |
65 |
178 |
C11.5 |
11.4 |
13/32" |
11.4±0.4 |
18.4±0.5 |
3.5 |
3.5 |
22 |
70 |
196 |
C13.0 |
13 |
1/2" |
13.2±0.4 |
21.0±0.5 |
4.0 |
3.5 |
20 |
75 |
231 |
C15.2 |
15.2 |
5/8" |
15.2±0.4 |
23.0±0.5 |
3.9 |
3.5 |
21 |
85 |
257 |
CH8.0 |
8.2 |
5/16" |
8.2±0.4 |
19.0±0.5 |
5.4 |
3.5 |
21 |
70 |
285 |
CH10.5 |
10.5 |
13/32" |
10.5±0.4 |
23.0±0.5 |
6.3 |
3.5 |
21 |
85 |
393 |
CH13a |
13 |
1/2" |
13.0±0.4 |
25.4±0.5 |
6.2 |
3.5 |
22 |
85 |
332 |
CH13b |
13 |
1/2" |
13.0±0.4 |
23.0±0.5 |
5.0 |
3.5 |
22 |
95 |
441 |
CH16 |
16.1 |
5/8" |
16.1±0.4 |
28.6±0.5 |
6.3 |
3.5 |
18 |
105 |
470 |
C19 |
19 |
3/4" |
19.0±0.5 |
28.5±0.6 |
4.8 |
1.5 |
18 |
105 |
428 |
C22 |
22.2 |
7/8" |
22.2±0.5 |
33.3±0.7 |
5.6 |
1.5 |
16 |
125 |
671 |
C28.5 |
28.5 |
9/8" |
28.7±0.6 |
39.7±0.8 |
5.5 |
1.5 |
12 |
150 |
831 |
FAQ
Q1: What refrigerants can this air conditioning hose be used for?
A: It is compatible with mainstream refrigerants worldwide: R134a, R410A, R22, R407C, R1234yf, applicable to all automotive air conditioners, household split AC, heat pumps and commercial cold storage refrigeration systems.
Q2: What is the maximum working pressure and burst pressure of the hose?
A: Standard rated working pressure is 3.5 MPa, the minimum burst pressure reaches 12 MPa, which can fully cope with the instantaneous high pressure generated during the operation of air conditioning systems, and will not burst under normal use.
Q3: Can this hose be used for car air conditioning?
A: Definitely yes. Our hoses fully comply with SAE J2064 automotive air conditioning hose industry standards, specially designed for automobile engine compartment high temperature, oil splashing and vibration environment, the most commonly used pipeline for auto AC repair.
Q4: How long is the service life of this air conditioning hose?
A: Under conventional indoor use environment, the service life can reach 8-10 years; used in automobile engine compartment harsh environment, the service life is about 5-7 years, far longer than ordinary single-layer rubber hoses.
Q5: Can I cut the hose to any length myself?
A: Yes, you can cut the hose to the required length with a dedicated rubber pipe cutter, then match with standard AC pipe fittings to complete the connection, flexible layout according to installation space.
Q6: Will the hose leak refrigerant slowly after long-term use?
A: Equipped with nylon barrier isolation layer inside the pipe wall, which greatly inhibits refrigerant molecular penetration. Under normal installation and use, slow leakage will not occur for many years, effectively locking refrigerant inside the circulation system.
Q7: Is the hose hard to bend during installation?
A: The pipe body has moderate flexibility, easy to bend and arrange in narrow spaces, no hardening embrittlement at low temperature, convenient for professional technicians to construct.
