Product brief description

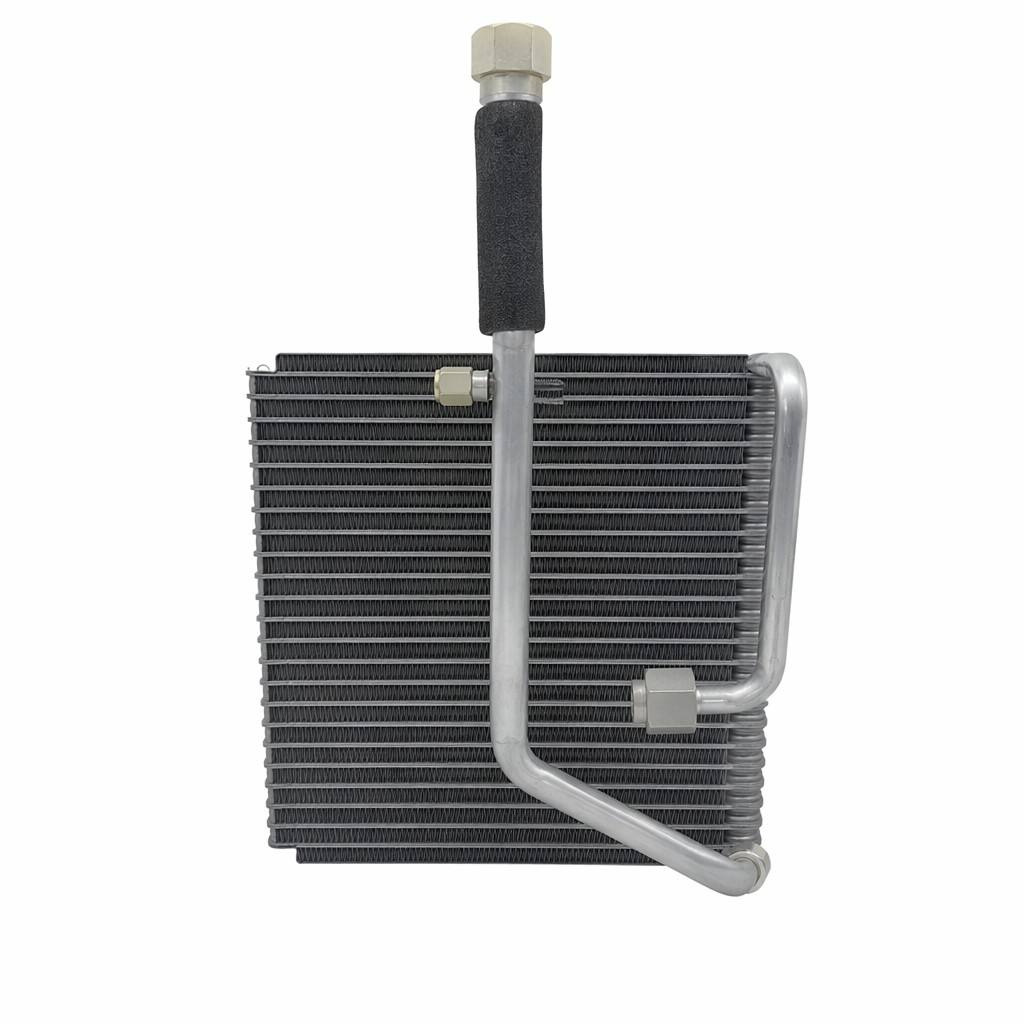

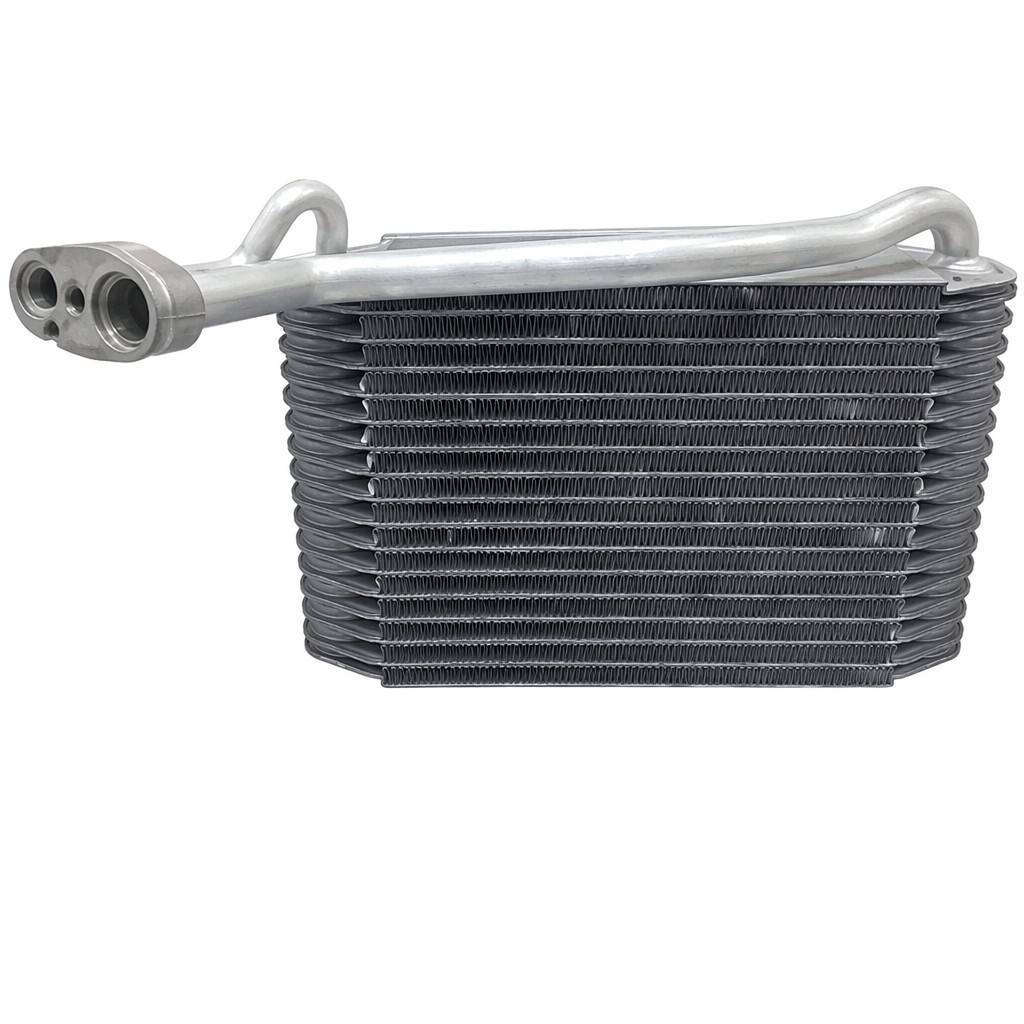

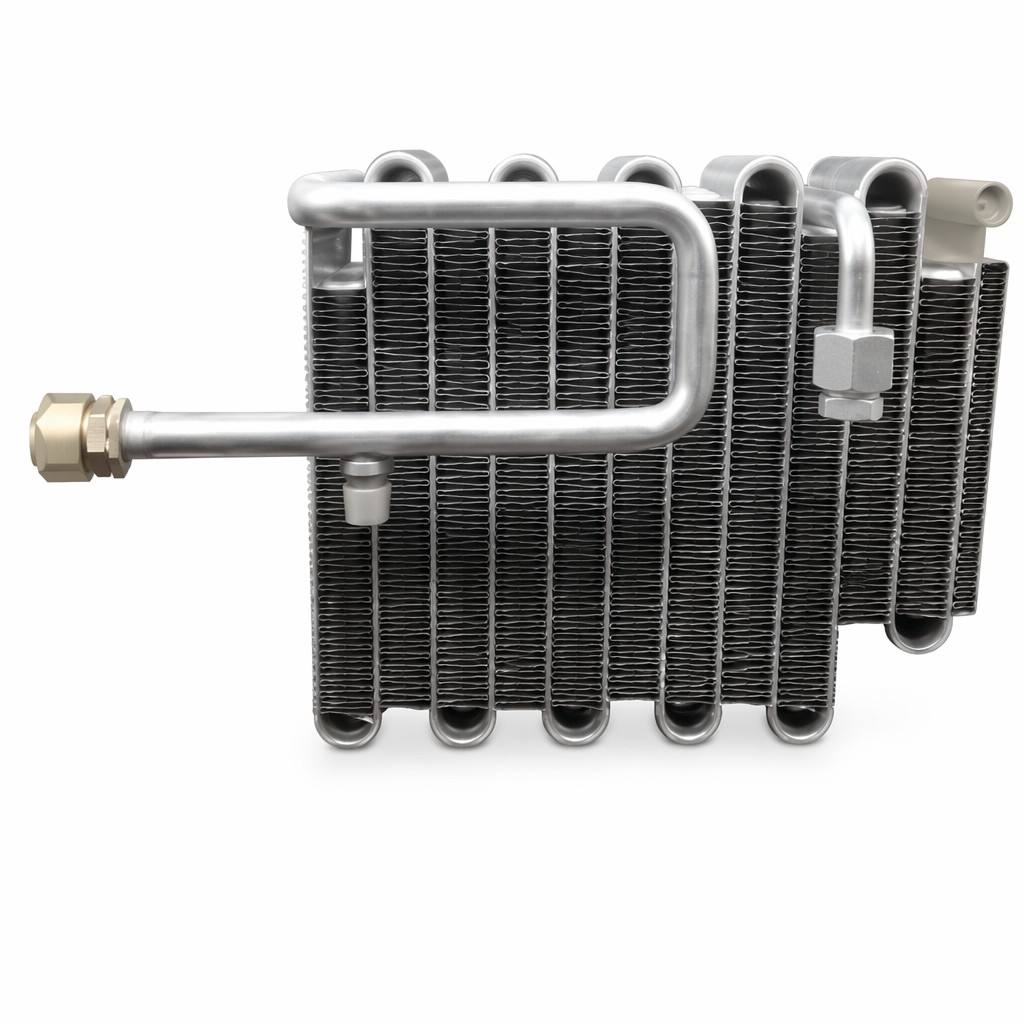

Our automotive air conditioning evaporator is the terminal refrigeration core component installed inside the vehicle dashboard, which undertakes the final heat absorption and cooling work of the entire car HVAC system. Adopting advanced aluminum plate-fin stacked structure and high-density micro-channel heat exchange design, this AC evaporator core is manufactured with high-purity anti-corrosion aluminum alloy, featuring ultra-high heat absorption efficiency, stable pressure resistance and excellent anti-leak performance. Every evaporator undergoes strict nitrogen high-pressure leakage testing before delivery to eliminate tiny pipeline leakage hidden dangers. Produced fully in accordance with OEM original dimensional standards, pipeline interfaces, mounting buckles and assembly positions are 1:1 matched with original vehicle parts, enabling seamless plug-and-play replacement without modification. Fully compatible with R134a & R1234yf mainstream automotive refrigerants, widely applicable to most passenger cars, SUV, pickup trucks and light commercial vehicles. It effectively fixes common air conditioning problems including insufficient cold air output, slow cabin cooling, unpleasant moldy odor inside the car, refrigerant leakage and frosting blockage, being an essential aftermarket replacement spare part for global auto repair technicians and car owners.
Product detailed description

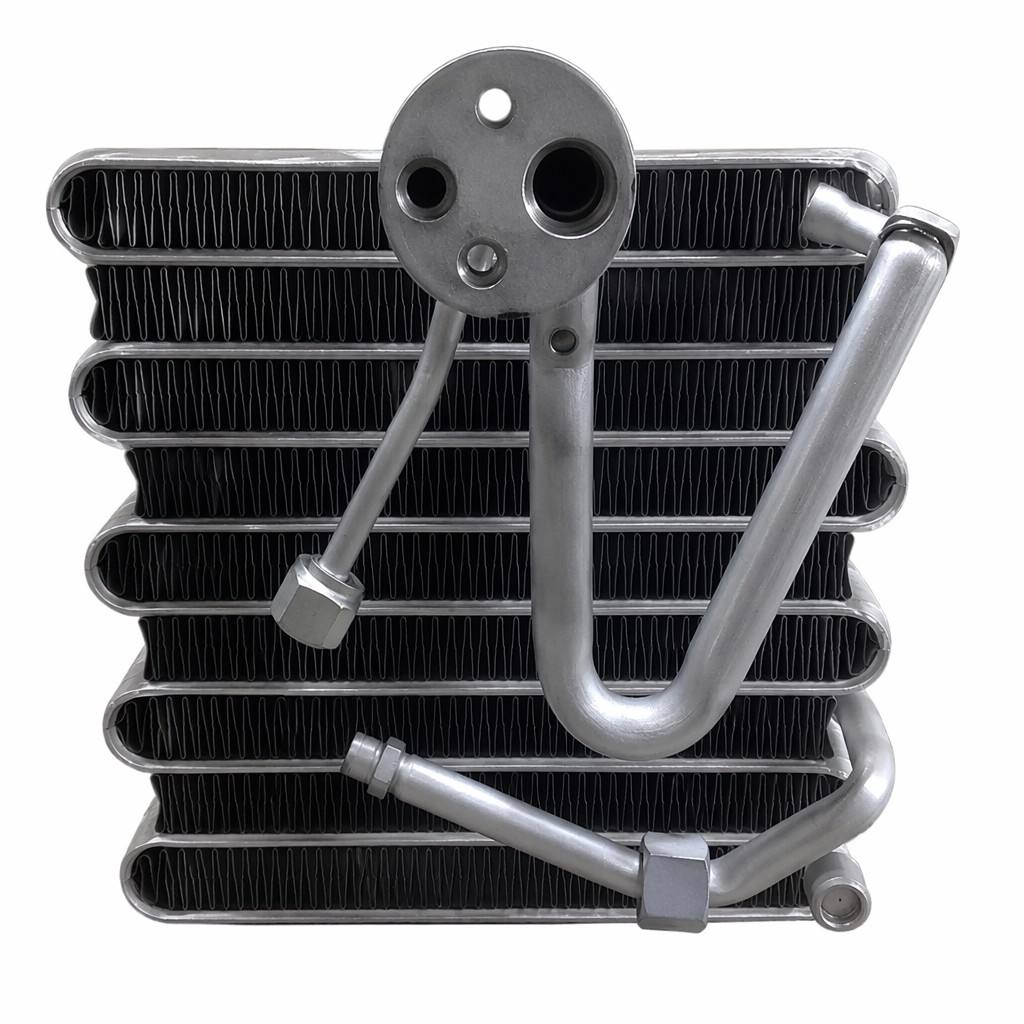

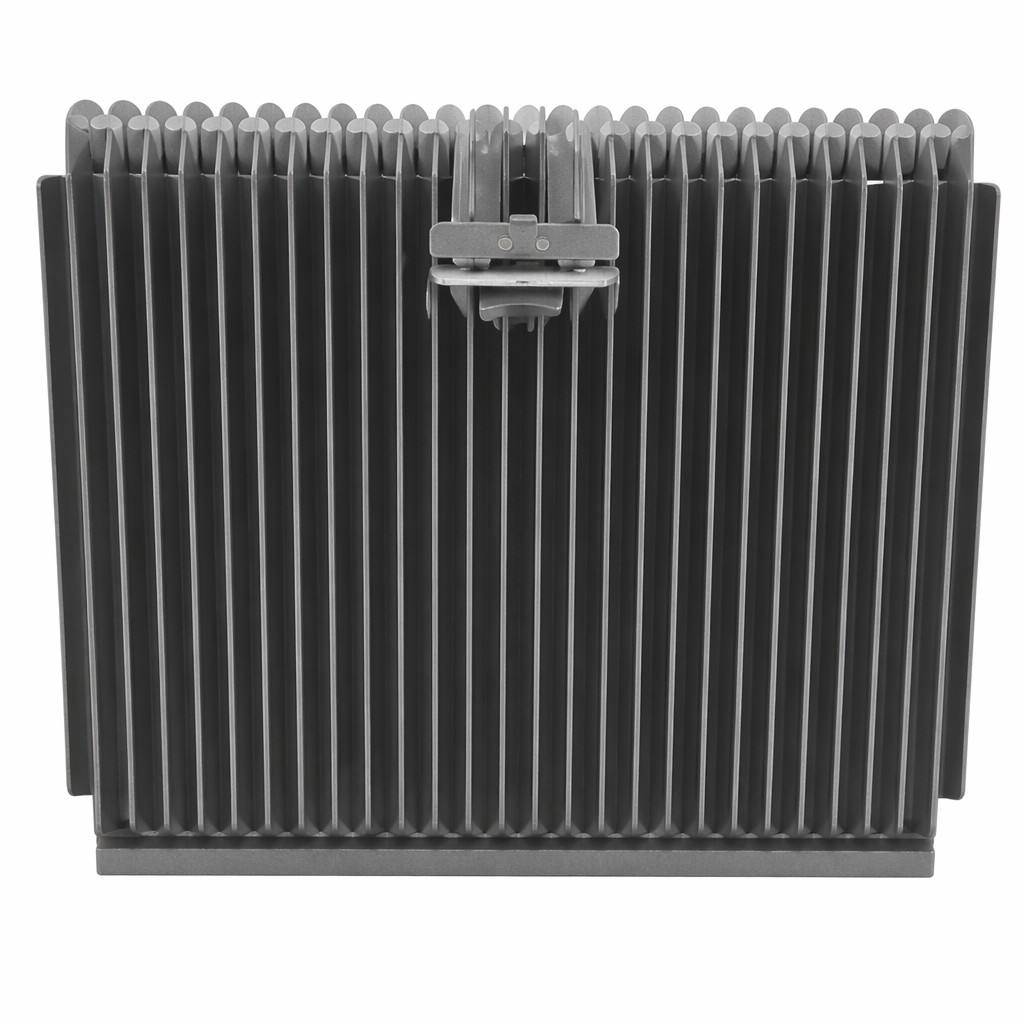

High-Density Plate-Fin Stacked Structure, Ultra-Fast Heat Absorption & Refrigeration Efficiency
We adopt the mainstream plate-fin laminated heat exchange structure specially designed for automotive air conditioning evaporators. Countless layers of ultra-thin aluminum heat exchange fins and micro flow channels are tightly stacked together, greatly expanding the heat exchange contact area between refrigerant and circulating air inside the car. Low-temperature refrigerant fully absorbs heat quickly when flowing through the pipeline, the cooling speed is increased by more than 30% compared with old-fashioned tube evaporators, the air outlet temperature is lower and more stable. Even under the high temperature of summer noon, the cabin can be cooled down rapidly, and the cold air output is uniform without local hot spots, greatly improving driving comfort.
High-Purity Anti-Corrosion Aluminum Alloy Material, Adapt to Long-Term Humid Internal Environment
The whole evaporator core is integrally formed with food-grade 3003 aluminum alloy through vacuum brazing. This material has outstanding moisture resistance, oxidation resistance, refrigerant corrosion resistance and acid-base erosion resistance, which is perfectly suitable for the dark, humid and condensate-rich working environment inside the dashboard for a long time. It will not rust, corrode or produce oxide impurities to block the pipeline after years of use. The pipe wall is thickened uniformly, which can resist the pressure fluctuation of the refrigeration system and avoid pipeline expansion cracking caused by instantaneous pressure change.
Fully Automatic Vacuum Brazing Process, Seamless Welding & Zero Refrigerant Leakage
All fin lap joints, pipeline interfaces and assembly welding positions are completed by imported fully automatic vacuum brazing equipment. The welding seams are tightly fused without virtual welding, tiny pores or gaps, fundamentally cutting off potential leakage points. Each finished evaporator will pass three rigorous air tightness tests before leaving the factory: high-pressure nitrogen filling holding test, underwater bubble leakage inspection and long-term pressure endurance test. All defective products with micro leakage are eliminated completely, ensuring no slow refrigerant loss during long-term vehicle operation, saving repeated refrigerant filling maintenance costs.
Anti-Fouling & Anti-Mold Surface Treatment, Effectively Eliminate Interior Odor
The surface of the aluminum fins is coated with an environmentally friendly hydrophobic anti-bacterial coating. It can effectively isolate condensed water, dust, pollen and fine impurities from adhering to the fin surface, reduce the growth of mold, bacteria and fungi caused by long-term water accumulation. After replacement, the unpleasant musty, mildew odor generated by the old dirty evaporator will completely disappear, the air blown out by the air outlet is fresh and clean, avoiding respiratory discomfort caused by harmful bacteria for drivers and passengers, especially suitable for families with children and the elderly.
Precise OEM 1:1 Dimensional Design, Direct Bolt-On Installation Without Modification
Every evaporator is produced strictly according to the original car OEM drawings and parameter standards. The overall outline size, inlet/outlet pipe caliber, fixing buckle position, mounting hole spacing and sealing edge all fully match the original vehicle assembly structure. Maintenance technicians do not need to cut, bend pipelines or modify the dashboard shell during replacement; the evaporator can be perfectly embedded into the air conditioner box assembly, the sealing gasket fits tightly without air leakage, greatly shortening the disassembly and installation time.
Stable Internal Flow Channel, Not Easy to Block & Reduce System Failure Rate
The internal micro flow channel is polished smoothly without burrs and residual welding slag. It can effectively prevent refrigeration oil carbon deposits, tiny metal impurities from accumulating and blocking the pipeline. The uniform refrigerant flow ensures the stable operation of the entire air conditioning system, avoids abnormal frosting on the evaporator surface, uneven wind volume and frequent system protection shutdown faults, and effectively protects the compressor, expansion valve and other expensive core components from secondary damage.
Wide Refrigerant Compatibility & Strong Environmental Adaptability
This evaporator is perfectly compatible with R134a and R1234yf two mainstream modern automotive refrigerants, covering almost all fuel vehicles, hybrid vehicle air conditioning systems worldwide. It can work stably in the temperature range of -40℃ ~ +130℃, adapting to high-temperature tropical regions, cold northern areas and humid coastal climates without performance attenuation.
=
Strict Full-Range Factory Quality Control System
We carry out full-process quality monitoring from raw material incoming inspection to finished product delivery: aluminum alloy purity screening, brazing parameter real-time calibration, sampling heat exchange efficiency testing, high-low temperature alternating aging test, damp heat corrosion resistance test. All production procedures comply with international automotive aftermarket quality standards, to ensure that each batch of evaporators has consistent performance, reliable quality and long service life.
Wide Application Scenarios
Household Passenger Vehicles: Sedans, hatchbacks, SUV daily air conditioning cooling failure and interior odor renovation replacement;
Light Commercial Vehicles: Pickup trucks, vans, small passenger transport vehicles air conditioning system maintenance;
Auto Repair Stores: Garages and HVAC maintenance shops daily conventional maintenance consumables bulk stocking;
Auto Parts Wholesalers: Global aftermarket distributors purchasing in bulk for offline retail and project supporting supply.
Tangible Benefits After Replacement
Replacing the dirty, leaking original evaporator with our high-efficiency aluminum evaporator can quickly restore strong and stable cooling capacity to the car air conditioner, completely remove interior moldy odor, and keep the blowing air fresh and hygienic. Smooth internal flow reduces the operating load of the compressor, cuts down vehicle fuel consumption, and avoids expensive compressor damage caused by system pressure disorder. With OEM-level quality and more affordable factory direct sales price, it is the most cost-effective internal core accessory for global automotive air conditioning maintenance.
Product Specifications
EVP NO. |
Dimensions (mm) |
Vehicle |
OEM Reference No. |
085-005 |
85×240×290 |
CL |
80211SV1305 / 80211SV1A21 |
008-017 |
74×235×286 |
CL |
80215S84A01 |
008-018 |
74×235×286 |
CL |
— |
008-019 |
74×235×286 |
CL |
— |
011-013 |
58×255×269 |
TL |
80211SDNA11 |
004-003 |
85×235×300 |
FIT |
80211SZ3AO1 |
054-002 |
38×295×275 |
FIT |
80215SJAA02 |
W-032 |
74×235×225 |
INTEGRA |
— |
008-028 |
74×235×226 |
INTEGRA |
80215ST3G01 / 80215ST3G11 |
085-003 |
85×242×228 |
INTEGRA |
80215ST7A21 / 80210SR1A12 / 80210ST7A21 |
004-004 |
85×235×290 |
LEGEND |
80210SP0A02 |
004-007 |
85×235×268 |
LEGEND |
80210SPOA01 |
038-011 |
38×255×281 |
MDX |
80215STXA01 / 80215SHJA02 |
W-002 |
74×235×226 |
SLX |
8970464880 |
001-031 |
60×235×225 |
SLX |
8971645850 / 8971707930 |
038-005 |
38×255×250 |
RDX |
80211STKA41 / 80210STKA41 |
100-036 |
100×240×230 |
NSX |
80210SL0A03 |
011-028 |
58×255×272 |
TSX |
80211SEAG41 / 80241SEAG41 |
031-001 |
74×225×208 |
A3 |
1J1820007A / 1J0820105 |
031-009 |
74×225×208 |
A3 |
1J2820103A |
043-004 |
60×245×262 |
A4 |
8E1820103 / 8E1820103A |
030-010 |
60×225×241 |
A3 |
1K1820103 / 1K1820103A / 1K1820103B |
016-021 |
73×340×203 |
A4 |
8D1820103A / E |
032-003 |
90×275×248 |
A6 |
4B1820103 |
FAQ
Q1: What vehicle models and refrigerants is this evaporator compatible with?
A: Our evaporators cover most mainstream European, American, Japanese, Korean and Chinese sedans, SUV and light trucks, compatible with R134a and R1234yf automotive refrigerants. You can provide your car year, specific model or OEM part number, we will check the accurate matching specification for you free of charge.
Q2: Does the evaporator come with sealing gaskets and accessories?
A: Each evaporator is equipped with matched sealing rubber gaskets as standard accessories, which can be directly installed with the original car fixing brackets and pipelines without purchasing additional sealing parts separately.
Q3: Can I install the evaporator by myself?
A: Professional certified automotive air conditioning technicians must complete the installation. The replacement process needs to disassemble the entire vehicle dashboard, recover refrigerant, vacuum the system and refill coolant, which requires professional tools and rich disassembly experience to avoid damaging interior parts and ensure tight system sealing.
Q4: Will refrigerant leak occur after long-term use?
A: All evaporators pass 100% high-pressure nitrogen air tightness testing before delivery. The seamless vacuum brazing structure minimizes leakage points. Under standardized professional installation and normal use, no refrigerant leakage will occur within the service cycle.
Q5: How long is the service life of this aluminum evaporator core?
A: With anti-corrosion aluminum material and antibacterial hydrophobic coating, under regular air conditioning cleaning and maintenance, the service life can reach 5~8 years, far longer than ordinary cheap thin-wall evaporators on the market.
Q6: How to maintain the evaporator to prolong its service life?
A: It is recommended to clean the car air conditioning pipeline and evaporator regularly every 6~12 months to remove surface dust and mold; replace the cabin air filter regularly to reduce impurity entering the evaporator box; avoid long-term use of AC internal circulation in damp rainy days, which can effectively prevent mold breeding and fin blockage.
