Product brief description

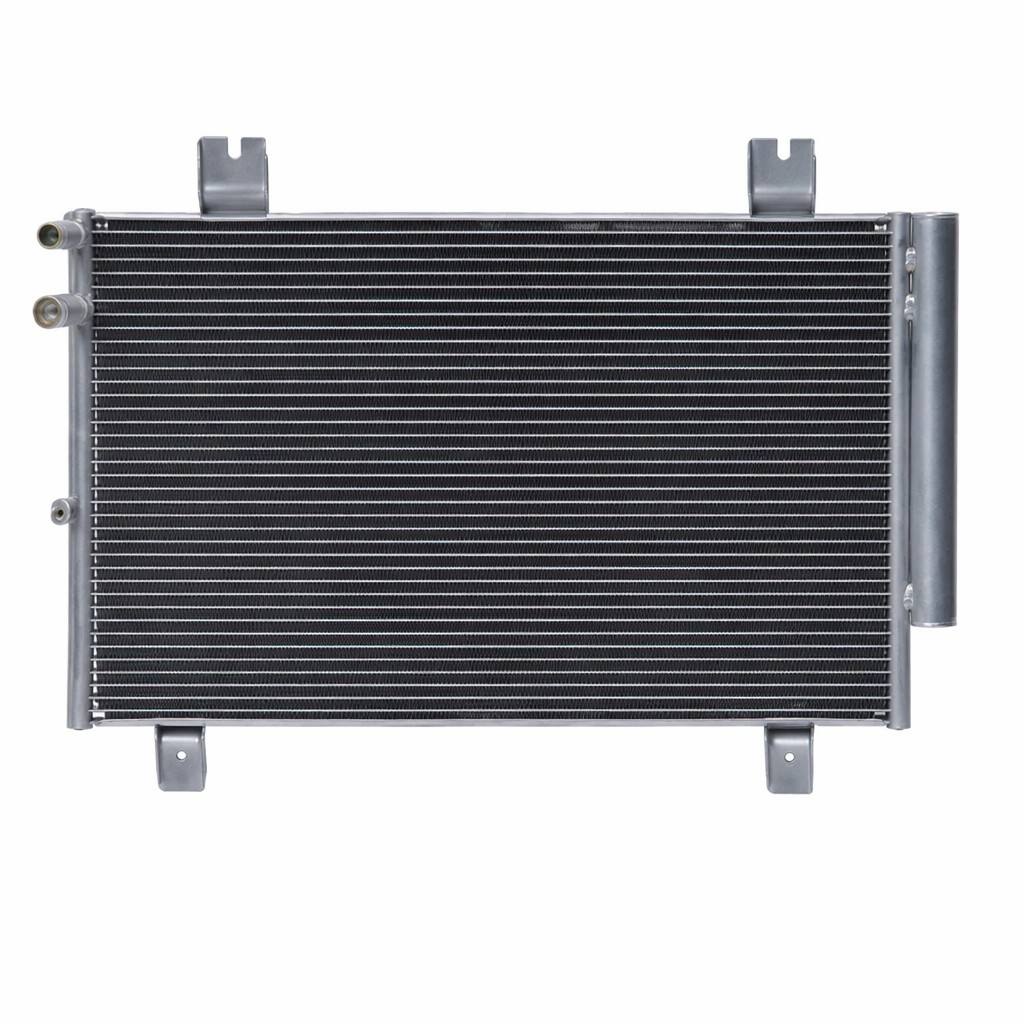

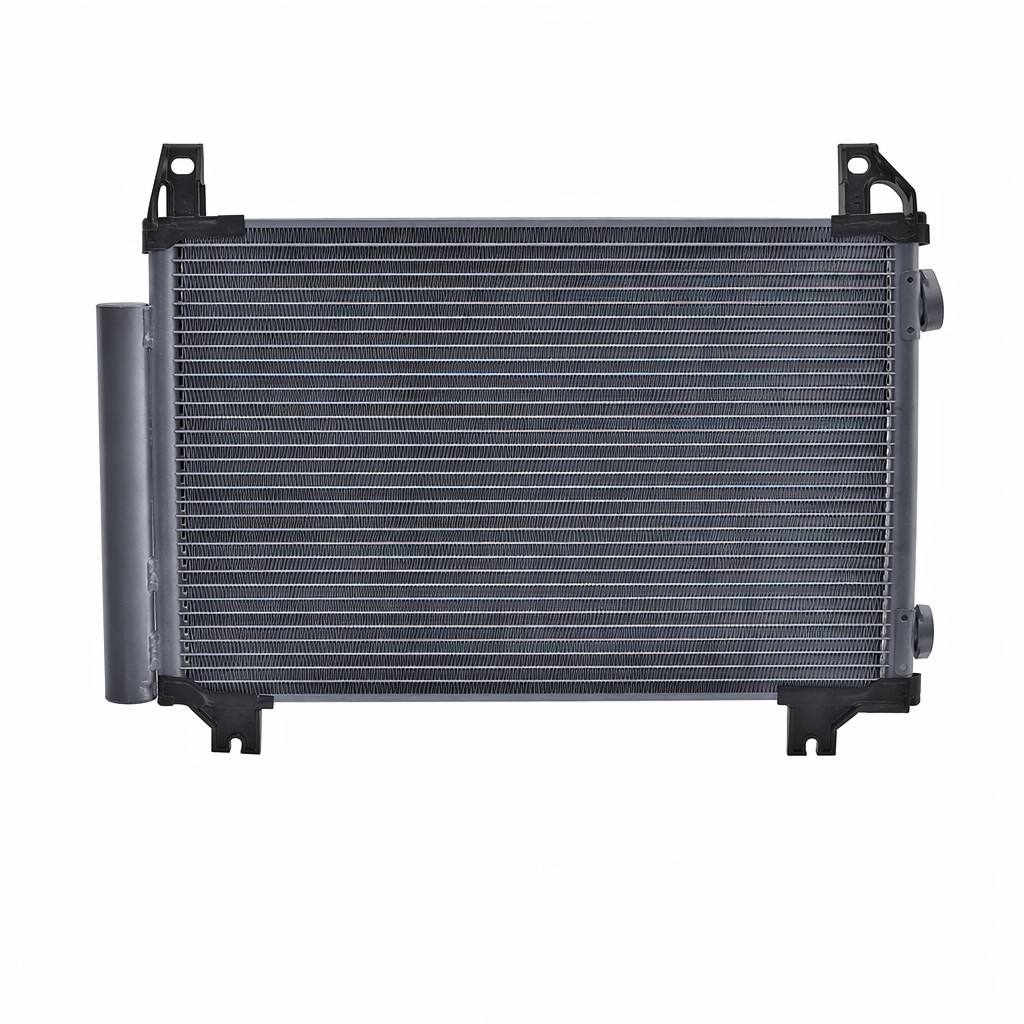

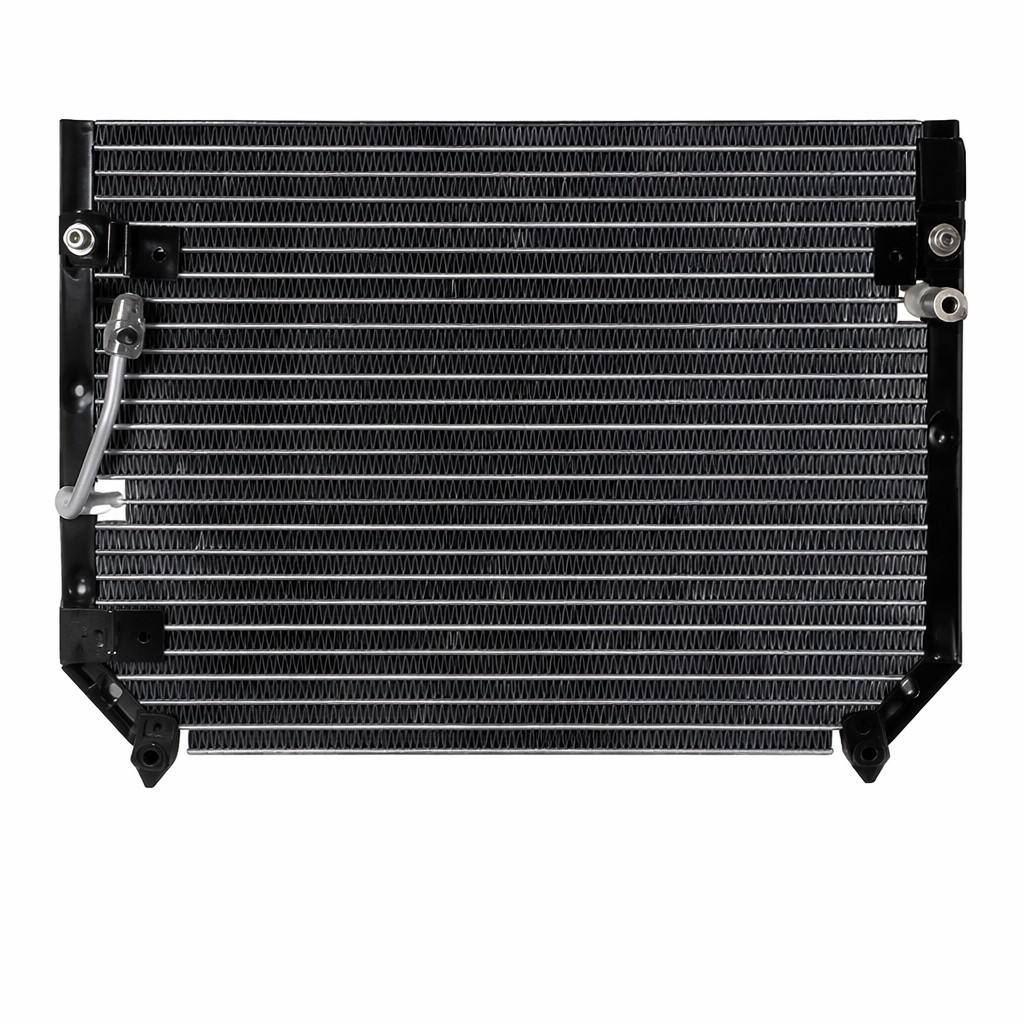

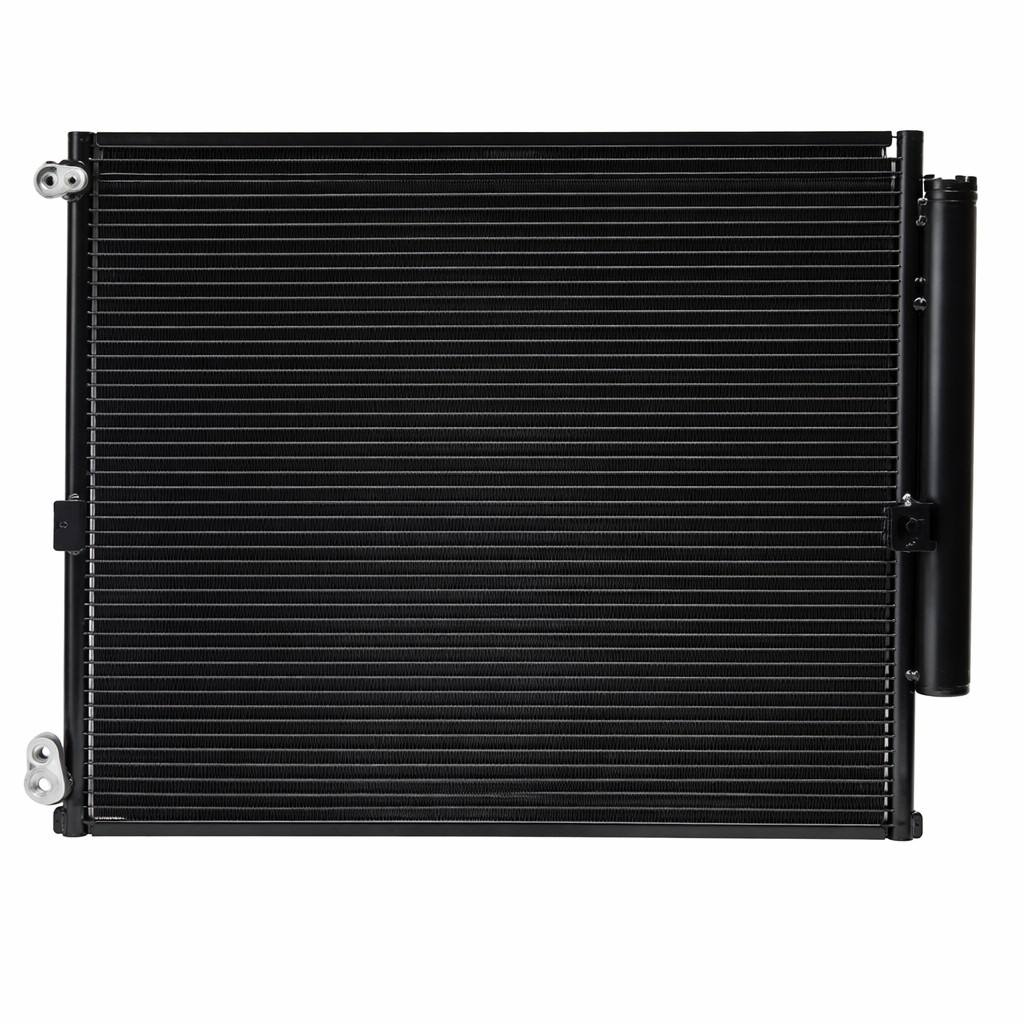

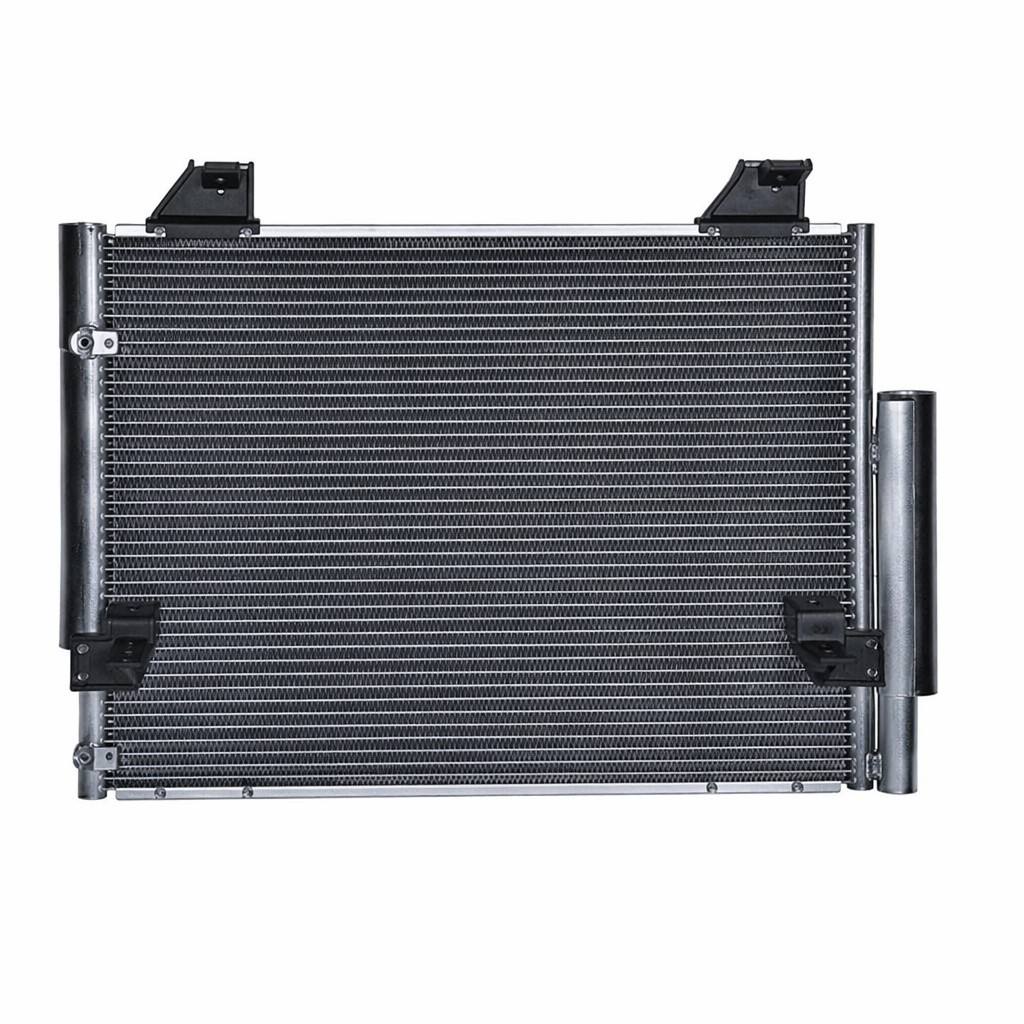

Our integrated auto AC condenser is an upgraded all-in-one heat dissipation component for automotive air conditioning systems, adopting advanced parallel flow microchannel structure and built-in receiver drier assembly. Constructed with high-purity 3003 aviation aluminum alloy, this car condenser delivers outstanding heat dissipation efficiency, pressure resistance, salt spray and rust prevention performance. Every finished unit undergoes strict nitrogen pressure tightness testing to eliminate hidden leakage risks. Produced strictly following OEM original dimensional standards, all mounting brackets, pipeline ports and installation positions are 1:1 matched with vehicle originals, supporting direct bolt-on installation without any cutting or modification. Universally compatible with R134a & R1234yf automotive refrigerants, widely applicable to most passenger cars, SUVs, pickup trucks and light vans. It perfectly resolves common AC faults including insufficient cold air, slow refrigeration, system high-pressure overload, frequent AC shutdown and refrigerant leakage, serving as a reliable aftermarket replacement spare part for global auto repair technicians and vehicle owners.
Product detailed description
Advanced Parallel Flow Microchannel Structure, Ultra-High Heat Dissipation Efficiency Different from outdated serpentine tube condensers with slow heat exchange speed, we adopt mainstream parallel flow microchannel heat dissipation technology widely used in modern automotive HVAC systems. Dense layered cooling fins are tightly combined with tiny internal microchannels, greatly expanding the contact area between refrigerant and ambient air. High-temperature gaseous refrigerant completes rapid heat exchange within a short period, effectively reducing the overall pressure of the air conditioning system, speeding up cabin cooling speed, and lowering the working load of the compressor. Even under continuous high-temperature baking in summer, the cooling effect will not decline, realizing energy-saving and stable refrigeration all day long.
3003 Aviation-Grade Aluminum Alloy Whole Body, Excellent Anti-Rust & Anti-Corrosion Ability The entire condenser main body is integrally formed by high-pressure brazing with industrial 3003 aluminum alloy, which is far superior to recycled thin aluminum materials used by cheap manufacturers. This aluminum material features strong oxidation resistance, acid and alkali corrosion resistance, salt spray resistance and excellent structural toughness. It can stably cope with harsh under-hood working environments: long-term high temperature, rainwater soaking, muddy splashing, coastal salt fog erosion and gravel impact. It will not rust, oxidize, scale or crack after years of use; thickened pipe wall effectively avoids pipeline deformation caused by instantaneous system pressure fluctuation.
Integrated Receiver Drier All-in-One Design, Simplify Installation & Optimize System Operation Our condenser adopts an integrated structure with built-in receiver drier on the side, combining the functions of heat dissipation, refrigerant storage, moisture absorption and impurity filtration into one assembly. Compared with split separate condenser and drier, the integrated design reduces pipeline connection interfaces by more than 60%, greatly cutting down potential refrigerant leakage points. The internal drying agent can continuously absorb residual moisture inside the AC system, filter tiny metal impurities and dust, effectively preventing ice blockage of expansion valves and internal pipeline sludge accumulation, keeping the refrigeration system clean and dry permanently, and extending the service life of the whole air conditioning assembly.
Full Automatic Vacuum Brazing Craft, Zero Leakage Welding Seams All joints between fins, microchannels and side plates are welded by full-automatic vacuum brazing equipment. The welding points are tightly fused without virtual welding, tiny gaps or cracks. Every finished condenser will go through three strict air tightness tests before delivery: high-pressure nitrogen filling retention test, underwater bubble leakage detection and long-term pressure endurance test. All products with potential leakage defects are eliminated thoroughly, ensuring no slow refrigerant leakage occurs during long-term use, saving repeated refrigerant refilling costs for users.
Reinforced Cooling Fins & Shockproof Bracket, Not Easy to Collapse & Deform The cooling fins on the surface are processed by hardening treatment, with strong compression resistance. When impacted by flying stones on the road or cleaned by high-pressure water guns, the fins will not collapse, bend or fall off easily, maintaining consistent heat dissipation area all the time. All fixed mounting brackets are integrally cast with the condenser, with reserved precise installation holes and clamping positions, matching the original car shock absorption rubber pads perfectly. It can buffer the vibration generated by vehicle driving and compressor operation, avoiding welding seam cracking caused by long-term vibration fatigue.
1:1 OEM Standard Dimensions, Direct Bolt-On Plug and Play Replacement Each condenser is produced strictly according to original factory OEM drawing parameters. The overall size, mounting hole spacing, inlet and outlet pipe calibers, bracket positions and drier interface are completely consistent with the original parts. No drilling, cutting, pipeline bending or accessory modification is required during replacement. Maintenance technicians can complete disassembly and installation quickly, greatly shortening vehicle maintenance time and improving work efficiency.
Wide Refrigerant Compatibility & Global Climate Adaptability This condenser is perfectly compatible with two mainstream automotive refrigerants R134a and R1234yf, covering almost all modern fuel vehicles, hybrid car air conditioning systems. The surface adopts anti-oxidation coating treatment, which can work stably in the temperature range of -45℃ ~ +125℃. It adapts to tropical high-temperature areas, frigid cold zones and coastal humid salt spray environments worldwide without performance attenuation.
Strict Full-Process Factory Quality Control
We implement comprehensive quality monitoring from raw material incoming inspection to finished product delivery: aluminum material purity and toughness screening, automatic brazing parameter calibration, random sampling heat dissipation efficiency test, high-low temperature alternating aging test, salt spray corrosion resistance test. All production links comply with international automotive aftermarket quality standards, ensuring each batch of condensers has stable performance and consistent quality.
Wide Application Scenarios
Household Passenger Vehicles: Sedans, compact & midsize SUVs, hatchbacks daily air conditioning fault repair and replacement;
Light Commercial Vehicles: Pickup trucks, vans, small refrigerated trucks air conditioning system maintenance;
Auto Repair Industry: Garages and HVAC maintenance shops daily maintenance consumables;
Wholesale Distribution: Auto parts distributors bulk stocking for offline retail and project supply.
Practical Benefits After Replacement
Replacing the aging, leaking original condenser with our integrated high-efficiency condenser can quickly restore rapid cooling capacity, eliminate intermittent cold air and high-pressure shutdown failures. The integrated drier purifies the internal system to protect the expensive compressor from damage caused by moisture and impurities, cutting long-term vehicle maintenance expenses. With OEM equivalent quality and more competitive factory direct sales price, it is the most cost-effective heat dissipation accessory for global automotive HVAC maintenance markets.
Product Specifications
SIZES (inch*inch) |
H (mm) |
W (mm) |
T (mm) |
FITTING |
10*18 |
254 |
457 |
22&26&32&44 |
O&F |
10*21 |
254 |
533 |
22&26&32&44 |
O&F |
10*23 |
254 |
584 |
22&26&32&44 |
O&F |
10*26 |
254 |
660 |
22&26&32&44 |
O&F |
10*28 |
254 |
711 |
22&26&32&44 |
O&F |
12*18 |
304 |
457 |
22&26&32&44 |
O&F |
12*21 |
304 |
533 |
22&26&32&44 |
O&F |
12*23 |
304 |
584 |
22&26&32&44 |
O&F |
12*26 |
304 |
660 |
22&26&32&44 |
O&F |
12*28 |
304 |
711 |
22&26&32&44 |
O&F |
14*18 |
355 |
457 |
22&26&32&44 |
O&F |
14*21 |
355 |
533 |
22&26&32&44 |
O&F |
14*23 |
355 |
584 |
22&26&32&44 |
O&F |
14*26 |
355 |
660 |
22&26&32&44 |
O&F |
14*28 |
355 |
711 |
22&26&32&44 |
O&F |
16*21 |
406 |
533 |
22&26&32&44 |
O&F |
16*23 |
406 |
584 |
22&26&32&44 |
O&F |
16*26 |
406 |
660 |
22&26&32&44 |
O&F |
16*28 |
406 |
711 |
22&26&32&44 |
O&F |
16*30 |
406 |
762 |
22&26&32&44 |
O&F |
18*21 |
457 |
533 |
22&26&32&44 |
O&F |
18*23 |
457 |
584 |
22&26&32&44 |
O&F |
18*26 |
457 |
660 |
22&26&32&44 |
O&F |
18*28 |
457 |
711 |
22&26&32&44 |
O&F |
18*30 |
457 |
762 |
22&26&32&44 |
O&F |
FAQ
Q1: Which vehicles and refrigerants does this condenser support?
A: Our condensers cover most mainstream European, American, Asian sedans, SUVs, pickup trucks and light vans, compatible with R134a and R1234yf automotive refrigerants. You can provide your car production year, model or OEM part number, we will confirm the accurate matching specification for you free of charge.
Q2: Does this product come pre-assembled with receiver drier?
A: Yes, all our condensers are integrated with receiver drier as one complete assembly, no need to purchase an additional separate drier, which reduces leakage risks and installation steps greatly.
Q3: Can I finish the installation by myself?
A: Professional certified auto air conditioning technicians are highly recommended. The replacement work includes refrigerant recovery, pipeline disassembly, condenser fixation, system vacuum pumping and refrigerant refilling, requiring dedicated HVAC maintenance tools to guarantee air tightness and normal system operation.
Q4: Will refrigerant leak after long-term use?
A: Each condenser passes 100% high-pressure nitrogen leakage testing before leaving the factory. Vacuum brazed seamless welding plus integrated structure minimizes leakage points. With standard professional installation, no refrigerant leakage will occur within the normal service cycle.
Q5: How long is the service life of this aluminum condenser?
A: Under regular vehicle maintenance and normal driving conditions, the service life reaches 6-9 years, 2~3 times longer than ordinary thin aluminum split condensers on the market.
Q6: How should I maintain the condenser to extend its lifespan?
A: Regularly clean the dust, fallen leaves and gravel accumulated on the fin surface to avoid blockage affecting heat dissipation; do not use high-pressure water guns to flush fins violently to prevent deformation; check AC system pressure once a year to keep the system running stably.
